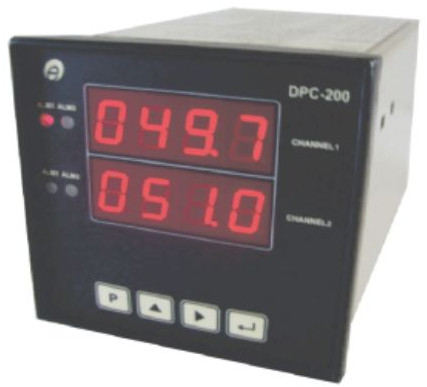

DPC200 Industrial Dual Input Process Indicator

• ON/OFF Controller

• Dual Channel Operation

• Universal Input Compatibility

• Open Sensor Indication

• Software Calibration

• Cold Junction Compensation for Thermocouple Inputs

Electronet Series DPC-200 is a dual-channel, universal input Process Indicator / Controller designed for diverse industrial applications.
It is suitable for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Level, and more.

Both channels are configurable through the front keypad for measuring ranges and control points. Control outputs are provided at the rear terminals. Retransmission output and communication interface further enhance the functionality of the DPC-200.

Type of Control: ON/OFF
Number of Inputs: 2

1. Universal Input

2. RTD – PT-100 / PT-200 (2 or 3 Wire)

3. Thermocouple – J / K / R / S / T / B / E Types

4. Current – 0–20 mA / 4–20 mA

5. Voltage – 0–5 V DC / 1–5 V DC / 0–0.1 V DC

• 4 × 2 Digit, 0.5” Red LED Display (7-Segment)

• Programmable for mA & Voltage (–999 to +9999)

• Fixed display for RTD & Thermocouple inputs

• R, S & B Type TC: ±0.5% of F.S.

• All other inputs: ±0.25% of F.S.

• Open Sensor Indication: Shows “OPEN” for RTD & Thermocouple

• Power Supply:

  • 90–250 V AC

  • 24 V DC (±10%)

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S./°C

• Response Time: <200 mSec

• Isolation: 1.4 kV between Input, Output & Power Supply

Enclosure Options:

1. DIN Standard

2. Field Mount – IP65

3. Flameproof – CMRI IIA IIB Certified

Bezel Size (DIN STD): 96 (H) × 96 (W) × 160 (D) mm
Mounting: Flush Panel Mount / Wall Mount (WP / FLP)
Weight: Approx. 1 kg

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)
