Electromagnetic Flow Meter
Leading Manufacturers, Exporters, Wholesaler, Distributor of ELMAG 100 Insertion Electromagnetic Flow Meter, ELMAG 200 Digital Electromagnetic Flow Meter, ELMAG 200W Electromagnetic Flow Meter, ELMAG 600 Electromagnetic Battery Flow Meter, ELMAG TX 22 Two Wire Electromagnetic Flow Meter, TS2000 CP Electromagnetic Flow Meter Switch, TS2000 EFM Electromagnetic Flow Meter Switch and TS2000 IFM Insertion Electromagnetic Flow Meter Switch from Pune.
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF |  View |
| Repeatability | ±0.5% Of F.S. |
| Line Size | 200 NB To 3000 NB |
| Display | LCD Display With 6-digit Flow Rate |
| Specialities | Insertion Type Design,Suitable For Conductive Liquids,Local Indication Through LCD Display,Universal Power Supply: 90 To 250V AC (Optional: 24V DC),Simple And Cost-effective Construction,Programmable Engineering Unit Conversion,Communication Port Availabl |
| Usage | Accurate Flow Measurement Of Conductive Liquids And Slurries In Closed Pipelines |
| Type | Insertion Electromagnetic Flow Meter |
| Excitation | Pulsed DC |
| Calibration Range | As Per Application Requirement |
| Linearity | ±1% Of F.S. |
| Temperature Coefficient | ±0.05% Per °C |

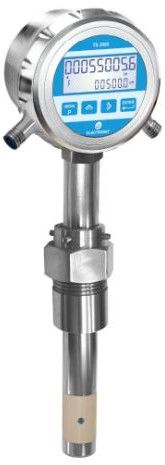

ELMAG-100 – Insertion Type Electromagnetic Flow Meter Features
Insertion type design
Suitable for conductive liquids
Material of construction selected as per process requirements
Local indication through LCD display
Universal power supply: 90 to 250V AC (Optional: 24V DC)
Simple and cost-effective construction
Programmable engineering unit conversion
Communication port available
Inbuilt relay status output (High / Low / Batch)
Description
Electronet Series ELMAG-100 is a microcontroller-based insertion type Electromagnetic Flow Meter designed for accurate flow measurement of conductive liquids and slurries in closed pipelines.
The flow meter features an obstruction-free measuring design, making it maintenance-free compared to conventional mechanical meters.
Using advanced Pulsed DC excitation, the flow meter ensures highly stable and accurate flow measurement and provides a 4–20 mA DC electrical output linearly proportional to volumetric flow rate.
Based on Faraday’s Law of Electromagnetic Induction, the meter generates a magnetic field inside the flow tube. The conductive fluid passing through it induces a voltage proportional to the flow velocity, which is then converted into a corresponding electrical signal.
The ELMAG-100 is available in Hot Retractable and Fixed Insertion versions to suit a wide range of industrial applications.
Technical Specifications Model Types
Mains Operated / 24V DC

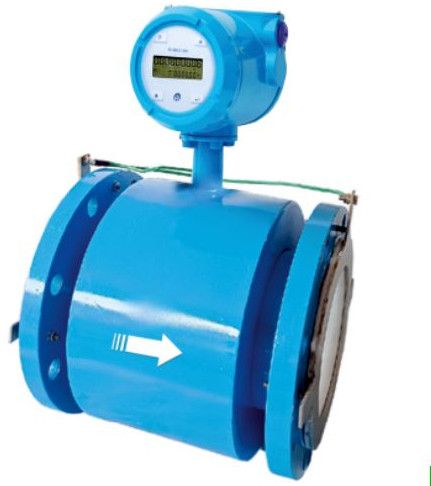

Two-Wire Version
Battery Operated
Media
Conductive liquids
Conductivity: > 5 µS/cm
Viscosity: Up to 200 cP
Line Size
200 NB to 3000 NB
Excitation
Pulsed DC
Display
LCD Display
6-digit flow rate
8-digit totalizer
4-digit pressure
Calibration Range
As per application requirement
Accuracy
< ±1% of E.S.
Additional: ±5 mm/sec for velocity range 0.5 m/s to 6 or 12 m/s
Linearity
±1% of F.S.
Repeatability
±0.5% of F.S.
Temperature Coefficient
±0.05% per °C
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Repeatability | <+0.2% Of M.V |
| Usage | Flow Measurement |
| Type | Digital Electromagnetic Flow Meter |
| Power Supply | 90-250 V AC, 50 Hz,24V DC (+/- 10%) |
| Power Consumption | <10 VA |
| Process Temperature | -20 To 85°C (Rubber Lining), -20 To 220°C (PTFE & PFA Lining) |
| Process Pressure | 16 Kg/cm2 Max |
| Response Time | <1 Sec |
| Calibration Accuracy | <+0.5% Of M.V. |
| Linearity | <+0.5% Of MV |
| Temperature Coefficient | <+0.05% Per °C |

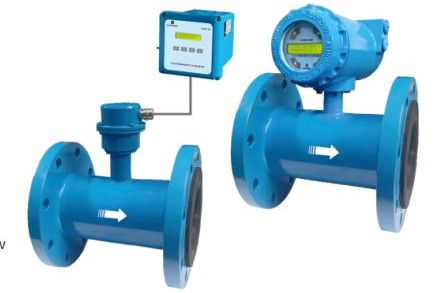

ELMAG-200 – Full Bore Electromagnetic Flow Meter Features
Universal power supply: 90–250V AC / 24V DC / Solar Powered
Suitable for conductive liquids
Full-bore design
Empty pipe indication
Material of construction selected as per process requirements
Local indication through LCD display
Inbuilt relay status output (High / Low / Batch)
HART compatible
Optional inbuilt pressure measurement
Optional flow + pressure combined measurement
Description
Electronet Series ELMAG®-200 is a microcontroller-based, full-bore electromagnetic flow meter ideal for precise flow measurement of conductive liquids and slurries in closed pipes.
Its obstruction-less design and absence of moving parts make it a maintenance-free alternative to conventional mechanical meters.
Using advanced Pulsed DC excitation, the meter provides superior accuracy and stability, delivering a 4–20 mA DC output proportional to volumetric flow rate.
Based on Faraday’s Law of Electromagnetic Induction, the flow meter measures flow by detecting the voltage generated when conductive fluid passes through a magnetic field inside the measuring tube.
The ELMAG-200 is available in various configurations to suit diverse industrial requirements including optional pressure measurement.
Technical Specifications Process & Media
Media: Conductive liquid
Minimum Conductivity: > 5 µS/cm
Viscosity: Up to 200 cP
Line Size: 15 NB to 1000 NB
Excitation: Pulsed DC
Outputs (Selectable)
Output 1:
4–20 mA DC
4–20 mA DC with HART (Generic)
Output 2:
Pulse Output (Open Collector Type)
Output 3:
2 Relay Outputs
Communication Options:
RS485 (MODBUS RTU)
GSM / GPRS (Dual SIM)
Ethernet (MODBUS TCP)
Display
LCD Display
6-digit flow rate
8-digit totalizer
Performance Specifications Velocity
0.3 m/s – 2.5 m/s (up to maximum 10 m/s)
Engineering Units
User programmable (Default: m³/hr)
Calibration
Wet calibrated at IEC / ISO / EN17025 NABL Accredited Facility
Accuracy
< ±0.5% of Measured Value
(+5 mm/sec for velocity range 0.3 to 6 or 12 m/s)
Linearity
±0.5% of Measured Value
Repeatability
±0.2% of Measured Value
Temperature Coefficient
±0.05% per °C
Process Conditions Process Temperature
–20 to 85°C (Rubber Lining)
–20 to 220°C (PTFE / PFA Lining)
Process Pressure
Up to 16 kg/cm² (Higher on request)
Material of Construction
Lining: Neoprene / Ebonite Rubber / PTFE / PFA / PU / Ceramic
Flange: MS / CS / SS316 / SS304
Electrodes: SS316L / Hastelloy-C / Platinum / Tantalum / Titanium
Coil Housing: SS304
Electrical & Electronics Power Supply
Option 1: 90–250V AC, 50Hz
Option 2: 24V DC (±10%)
Power Consumption
< 10 VA
Inline Pressure Sensor (Optional)
16 kg/cm²
Isolation
1.4 kV between input, output & power supply
Response Time
< 1 second
Enclosure Options
Field Mount Weatherproof IP-67 / IP-68 (NEMA 6 / 6P)
DIN Standard IP-54 (NEMA 3)
Flameproof: CMRI IIA IIB Certified, ATEX Ex-d
Sensor / Flow Tube Protection
Weatherproof IP-67 / IP-68
Installation Process Connections
ANSI 150 Flanged (ASME B16.5)
Other standards on request
Mounting
In-line horizontal or vertical installation
Ambient Conditions
Temperature: –20 to 70°C
Humidity: 5% to 95% (Non-condensing)
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |

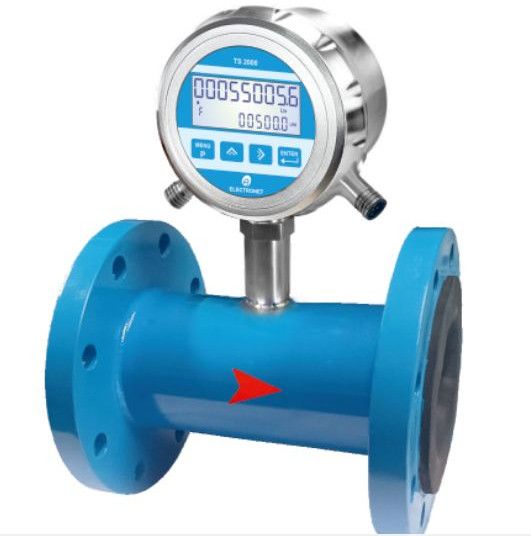

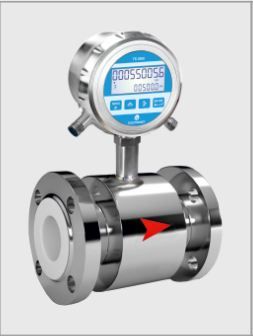

| Display | 2-line Backlit Display With Touch Control |
| Usage | Flow Measurement |
| Material | Stainless Steel |
| Type | Electromagnetic Flow Meter |
| Velocity Range | 0.3 M/s - 2.5 M/s (Max. 10 M/s) |
| Temperature Range | 0 To +80 °C (32 To 176 °F),-20 To +50 °C (-4 To 122 °F),-20 To +180 °C (-4 To 356 °F) |
| Power Supply | 100 - 240 V AC,24 V DC |
| Sensor Features | Flexible Connections, Corrosion-protected (EN ISO 12944), IP 68 |
| Transmitter Features | Display With Backlight For Safe Operation, Durable Housing, Integrated Data Logger |

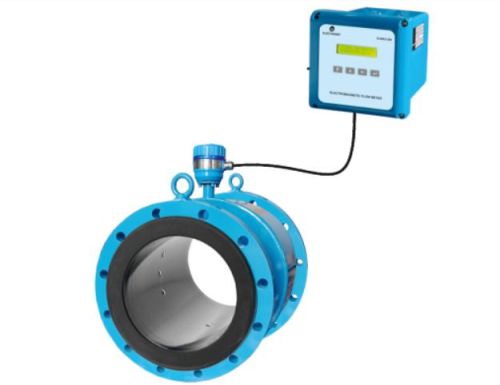

LMAG-200W – Zero Upstream/Downstream Electromagnetic Flow Meter Features
No inlet or outlet straight-run requirement (0 × DN)
Full-bore design for unobstructed flow
Advanced signal processing for enhanced stability
No tube restriction and zero pressure loss
Multiple electrodes for higher accuracy
Stable and accurate long-term performance
Reliable, cost-efficient, and flexible flow measurement solution
Description
The Electronet ELMAG-200W is a next-generation zero-run electromagnetic flow meter engineered for accurate and maintenance-free flow measurement without the need for upstream or downstream straight pipe runs.
Utilizing Faraday’s Law of Electromagnetic Induction, the ELMAG-200W delivers high accuracy, exceptional turndown capability, and stable operation even in challenging water and wastewater applications.
Its full-bore construction ensures zero pressure loss, while the absence of moving parts minimizes maintenance requirements.
Equipped with a robust selection of liners and electrodes, along with an integrated local display, it offers one of the most user-friendly and efficient flow measurement solutions available—without requiring external software or hardware.
Typical applications include:
Water distribution
Wastewater treatment
Industrial utility monitoring
Irrigation and municipal systems
Technical Specifications Performance Characteristics
Nominal Diameters: 50 NB to 600 NB (2" to 24")
Process Connections: EN (DIN), ASME, JIS, AWWA flanges
Process Temperature: –20 to +90°C (–4 to +194°F)
Degree of Protection: IP67 (Type 4X enclosure)
Measured Error:
Standard: ±0.5% of M.V.
Optional: ±0.3% of M.V.
Directly after bend: ±0.5% of M.V.
Turndown Ratio: 100:1
Electrical Conductivity Required: ≥ 25 µS/cm
Inlet/Outlet Runs: 0 × DN (No straight run required)
Measured Variables: Volume flow, conductivity, mass flow
Max Process Pressure: PN40 / Class 300 / 20K
Materials Liner Options
Polyurethane
Hard Rubber
PTFE
Liner Temperature Limits
Hard rubber: 0 to +80°C (+32 to +176°F)
Polyurethane: –20 to +50°C (–4 to +122°F)
PTFE: –20 to +180°C (–4 to +356°F)
Electrodes
SS316L
Hastelloy C-22
Tantalum
Platinum
Wetted Parts Temperature (Ambient)
Hard rubber: 0 to +80°C
Polyurethane: –20 to +50°C
Additional Technical Specifications Velocity Range
0.3 m/s – 2.5 m/s (up to max. 10 m/s)
Housing Materials
Sensor Housing: MS / SS304 / SS316
Transmitter Housing: Aluminium Die-Cast / SS316
Protection Classes
Compact Version: IP66 / IP67
Remote Sensor (Standard): IP66 / IP67
Remote Sensor (Optional): IP68 with protective varnish
Remote Transmitter: IP66 / IP67
Display & Operation
2-line backlit LCD display
Touch operation (from outside)
Full configuration through local display
Integrated data logger
Outputs
3 Output Channels Including:
0–20 mA / 4–20 mA with Generic HART (Active)
Pulse / Frequency / Switch Output (Passive)
Additional Pulse / Frequency Output (Passive)
Digital Communication
HART
MODBUS RS-485
Power Supply
100–240 V AC
24 V DC
Approvals & Calibration
Calibration performed at ISO/IEC 17025 accredited facilities
Material certificates 3.1 available
Sensor Features
Flexible connections
Corrosion-protected structure (EN ISO 12944)
IP68 protection option available
Transmitter Features
Backlit display for safe and easy operation
Rugged and durable housing
Integrated data logger for process recording
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Repeatability | +/-0.2% Of MV. |
| Display | LCD Display - 5 Digit For Flow Rate & 9 Digit For Totalizer |
| Line Size | 15 NB To 600 NB |
| Type | Electromagnetic Battery Flow Meter |
| Power Supply | Battery |
| Media | Liquid (Conductive) |
| Conductivity | >5uS/cm |
| Viscosity | 200 Cp Max |
| Excitation | Pulsed DC |
| Linearity | +/-0.5% Of MV. |
| Temperature Coefficient | +/-0.05% Per °C |
| Process Pressure | 16 Kg/cm2 Max (Higher On Request) |

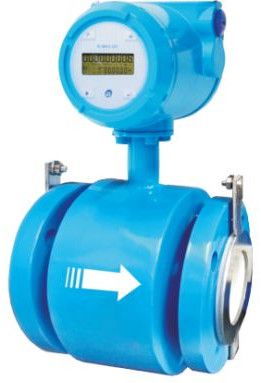

ELMAG-600 – Battery / Solar Powered Electromagnetic Flow Meter Features
Battery-powered / Solar-powered design
Suitable for conductive liquids
Full-bore electromagnetic design
Empty pipe indication
Inbuilt data logging facility
Local indication through LCD display
Optional communication port
Simple and cost-effective construction
Maintenance-free, no moving parts
Description
The Electronet ELMAG-600 is a battery-powered electromagnetic flow meter designed for applications where field power is unavailable. It offers complete installation flexibility without compromising performance or accuracy.
With a battery life of 2 to 10 years (based on sampling and communication interval), the ELMAG-600 ensures reliable long-term operation. The meter is easy to use, simple to install, and requires no regular maintenance.
It is ideal for municipal and industrial water applications, cooling towers, water treatment systems, and domestic installations.
The LCD display indicates flow rate and totalized flow, and automatically turns OFF after 10 minutes to save power. It can be reactivated using the Enter key.
Technical Specifications Process & Media
Media: Conductive Liquid
Line Size: 15 NB to 600 NB
Conductivity: > 5 µS/cm
Viscosity: Up to 200 cP
Excitation: Pulsed DC
Electronics
Power Supply: Battery Powered / Solar Powered
Mode: Integral / Remote
Display:
LCD
5-digit flow rate
9-digit totalizer
Calibration:
Wet calibrated at IEC / ISO / EN17025 NABL Accredited Facility
Performance
Accuracy: < ±1% of M.V. (+5 mm/s for velocity range 0.3–6 or 12 m/s)
Linearity: ±0.5% of M.V.
Repeatability: ±0.2% of M.V.
Temperature Coefficient: ±0.05% per °C
Process Temperature:
–20 to 85°C (Rubber lining)
–20 to 220°C (PTFE lining)
Process Pressure: Up to 16 kg/cm² (higher on request)
Velocity Range: 0.3 – 2.5 m/s (up to max. 10 m/s)
Mechanical Construction Material of Construction
Lining: Neoprene / Ebonite Rubber / PTFE / PFA / PU / Ceramic
Flange: MS / CS / SS316 / SS304 / PVC
Electrodes: SS316L / Hastelloy-C / Platinum / Tantalum / Titanium
Coil Housing: MS / SS304 / SS316 / PVC
Electronics Enclosure (MOC)
Aluminium Die-Cast
SS316
ABS Plastic
Additional Specifications
Low Battery Indication: Provided
Battery Life: 2 to 10 years (depending on sampling interval)
Response Time: < 10 seconds
Electronic Protection Class:
Field Mount: IP-67 / IP-68
DIN Standard: IP-54
Flameproof: CMRI IIA IIB Certified
Sensor / Flow Tube Protection: IP-67 / IP-68
Installation
Process Connections: ANSI 150 flanged (ASME B16.5) – Others on request
Mounting: In-line horizontal / vertical
Ambient Temperature: –20°C to 70°C
Humidity: 5% to 95% non-condensing
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Accuracy | < +0.5% Of M.V. +(+ 5mm /sec) For Velocity Range 0.3 M/s To 6 Or 12 M/s |
| Display | LCD Display - 5 Digit For Flow Rate And 8 Digit For Totalizer |
| Line Size | 15 NB To 300 NB |
| Type | Electromagnetic Flow Meter |
| Power Supply | 24V DC |
| Power Consumption | 40 Mw |
| Conductivity | >5 Ps/cm |
| Viscosity | 200 Cp Max |
| Excitation | Pulsed DC |
| Output | 4 To 20mA DC, 4 To 20mA DC With HART |
| Engineering Unit | User Programmable (m³/hr By Default) |
| Calibration | Wet Calibrated At IEC/ISO/EN17025 Accredited Calibration Laboratory |
| Flow Velocity Range | 0.3m/s To 6m/s |
ELMAG-TX22 – Two-Wire Full Bore Electromagnetic Flow Transmitter Features
Full-bore electromagnetic design
Suitable for conductive liquids
Two-wire transmitter system
Empty pipe indication
Material options available as per process requirements
Local LCD display for flow rate & totalizer
Maintenance-free, obstruction-less design
Simple and cost-effective construction
Description
The Electronet ELMAG-TX22 is a microcontroller-based, two-wire, full-bore electromagnetic flow transmitter designed for accurate measurement of conductive liquids and slurries in closed pipelines.
Built using Pulsed DC excitation technology, the ELMAG-TX22 provides high stability, excellent accuracy, and long-term reliability. The device generates a magnetic field inside the flow tube—based on Faraday’s Law of Electromagnetic Induction—and the voltage induced by the flowing liquid is converted into a precise 4–20 mA output (with optional HART).
Its obstruction-free design ensures zero pressure loss, minimal maintenance, and long operational life. The rugged construction, multiple material options, and advanced signal processing make it suitable for a wide range of industrial applications.
Technical Specifications Process & Media
Media: Conductive liquids
Line Size: 15 NB to 300 NB
Conductivity: > 5 µS/cm
Viscosity: up to 200 cP
Electronics
Type: Integral
Power Supply: 24 V DC
Power Consumption: 40 mW
Excitation: Pulsed DC coil
Display:
LCD
5-digit flow rate
8-digit totalizer
Output Options:
4–20 mA DC
4–20 mA DC with HART
Performance
Accuracy: < ±0.5% of M.V. (+5 mm/s for velocity range 0.3–6 or 12 m/s)
Flow Velocity Range: 0.3 m/s to 6 m/s
Extended Velocity Range: up to 10 m/s
Linearity: ±0.5% of M.V.
Repeatability: ±0.2% of M.V.
Temperature Coefficient: ±0.1% per °C
Temperature & Pressure
Process Temperature:
–20 to 85°C (Rubber lining)
–20 to 220°C (PTFE lining)
Process Pressure: up to 16 kg/cm² (higher on request)
Material of Construction
Lining: Neoprene / Ebonite Rubber / PTFE / PFA / PU / Ceramic
Flange: MS / CS / SS316 / SS304 / PVC
Electrodes: SS316L / Hastelloy-C / Platinum / Tantalum / Titanium
Coil Housing: MS / SS304 / SS316 / PVC
Electrical & Safety
Isolation: 1.4 kV between input, output & power supply
Response Time: < 10 seconds
Electronic Protection Class:
IP-67 / IP-68 (Field mount)
Sensor/Flow Tube Protection: IP-68
Installation
Process Connection: ANSI 150 flanged (ASME B16.5) – others on request
Mounting: In-line (horizontal or vertical)
Ambient Temperature: –20°C to +70°C
Ambient Humidity: 5% to 95% RH (non-condensing)
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Electromagnetic Flow Meter Switch |
| Material | SS-316L Electrodes |
| Protection Class | IP-68 |
| Line Sizes | 08 NB To 100 NB |
| Display | Local LCD Display |
| Construction | S5-316 |
| Corrosion Resistance | Excellent |

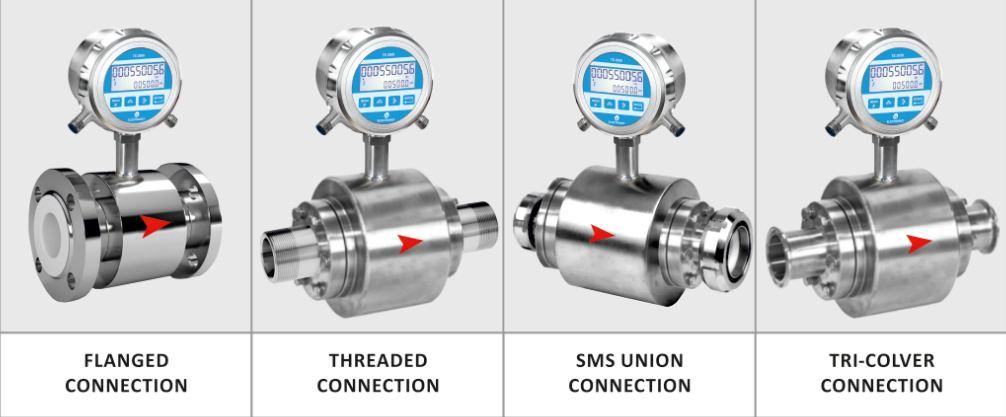

| Process Connection | Flanged, Threaded, SMS Union, Tri-clover |
| Accuracy | + 0.5% Of M.V. |
| Usage | Flow Measurement,Process Control |
| Suitable Liquids | Conductive Liquids |
| Flow Monitoring | Real-time |
Features
Compact full-bore electromagnetic flow meter
Suitable for conductive liquids
Typical accuracy of ±0.5% of M.V.
Protection class: IP-68 (sensor + electronics)
Supports line sizes from 08 NB to 100 NB
Local LCD display for real-time flow monitoring
Robust SS-316 construction for enhanced durability and corrosion resistance
Description
The Electronet TS2000-CP is a compact, full-bore electromagnetic flow meter engineered for accurate and cost-effective flow measurement in pipelines ranging from 08 NB to 100 NB. Built with SS-316L electrodes and PTFE/PEEK insulation, it ensures superior corrosion resistance and long operational life.
The flow meter offers versatile process connection options including Flanged, Threaded, SMS Union, and Tri-Clover, making it suitable for diverse industrial applications. With an IP-68 protection class for both sensor and electronics, it performs reliably even in submerged or harsh environments.
Designed for precision, durability, and ease of installation, the TS2000-CP is widely used in demanding process control applications across water treatment, chemical, food & beverage, and industrial utility systems.
Technical Specifications
Performance Characteristics
Measuring Principle: Electromagnetic
Media: Conductive liquids
Conductivity: > 5 µS/cm
Viscosity: ≤ 200 cP
Line Size: 08 NB to 100 NB
Accuracy: ±0.5% of M.V.
Response Time: 1 sec
Display: Backlit LCD
6-digit flow rate
8-digit totalizer
Process Conditions
Process Temperature: up to 200°C
Process Pressure: up to 16 kg/cm²
Mounting Orientation: Inline horizontal / vertical
Process Connections:
Flanged
Threaded
SMS Union
Tri-Clover
Ambience
Ambient Temperature: –20°C to +75°C
Ambient Humidity: 5% to 95% RH (non-condensing)
Output Signals
Output 1: 4–20 mA
Output 2: Pulse (Open Collector Type) – Optional
Alarm/Relay: 1 Relay Output – Optional
Communication: RS-485 MODBUS RTU – Optional
Protection
Electronics Protection: Weatherproof IP-68
Sensor/Flow Tube Protection: Weatherproof IP-68
Electrical Connection & Power
Connector: M12
Power Supply: 18–30 V DC
Power Consumption: < 5 VA
Material of Construction
Electrodes: SS-316L
Wetted Parts: SS-316
Sensor Assembly: SS-316
Electronics Enclosure: SS-316
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Display | Backlight LCD - 6 Digit For Flow Rate, 8 Digit For Flow Totalizer |
| Accuracy | +0.5% Of M.V. |
| Usage | Conductive Liquids |
| Type | Electromagnetic Flow Meter Switch |
| Line Size Range | DN 15 To DN 300 |
| Protection Class | IP68 |
| Process Temperature | 200°C Max |
| Process Pressure | 16 Kg/cm Max |
| Output Signal | 4 To 20mA,Pulse - Open Collector Type (Optional) |
| Communication Output | RS-485 MODBUS RTU (Optional) |
| Response Time | 1Sec |
| Excitation | Pulsed DC |
| Media | Liquid (Conductive) |
| Conductivity | >5 PS/cm |
| Viscosity | 200 Cp Max |
| Ambient Conditions | 20°C To 40°C,5 To 95% Non-condensing |
Features
Full-bore type electromagnetic flow meter
Potential-free relay output for ON/OFF control
Suitable for conductive liquids
Empty pipe detection
Available in line sizes DN 15 to DN 300
High measurement accuracy of ±0.5% of M.V.
Protection class: IP-68 (sensor + electronics)
Rugged SS-316 construction ensures long-term durability and corrosion resistance
Technical Specifications Performance Characteristics
Measuring Principle: Electromagnetic flow measurement
Media: Conductive liquids
Conductivity: > 5 µS/cm
Viscosity: ≤ 200 cP
Line Size: 15 NB to 300 NB
Accuracy: ±0.5% of M.V.
Excitation: Pulsed DC
Response Time: 1 sec
Display: Backlit LCD
6-digit flow rate
8-digit totalizer
Process Conditions
Process Temperature: up to 200°C
Process Pressure: up to 16 kg/cm²
Mounting Type: Inline – Horizontal / Vertical
Process Connection: ANSI 150 flanged as per Table B 16.5 (others on request)
Ambient Conditions
Ambient Temperature: –20°C to +75°C
Humidity: 5% to 95% RH (non-condensing)
Output Signals
Output 1: 4–20 mA
Output 2: Pulse (Open Collector Type) – Optional
Alarm/Relay Output: 1 potential-free relay – Optional
Communication: RS-485 MODBUS RTU – Optional
Protection
Electronics Protection: Weatherproof IP-68
Sensor / Flow Tube Protection: Weatherproof IP-68
Electronics Location: Integral or remote
Remote Cable Length: 5 meters
Electrical Connection: M12 connector
Power Requirements
Voltage Supply: 18–30 V DC
Power Consumption: < 5 VA
Material of Construction
Lining Options: Neoprene, Ebonite Rubber, PFA, PTFE, PU, Ceramic
Flange Material: MS, CS, SS-316, SS-304
Coil Housing: SS-316L
Electrodes: SS-316L / Hastelloy C / Platinum / Tantalum / Titanium
Electronics Enclosure: SS-316
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Electromagnetic Flow Meter Switch |
| Material | Stainless Steel |
| Line Size | DN 40 To DN 300 |
| Accuracy | ±0.5% Of F.S. |
| Display | Backlit LCD |
| Analog Output | 4–20 MA |
| Voltage | 18–30 VDC |
| Protection Class | IP-68 |
| Measuring Principle | Electromagnetic Flow Measurement |
| Conductivity | > 5 µS/cm |
| Viscosity | Up To 200 CP |
| Response Time | 1 Second |
| Process Temperature | Up To 200°C |
| Process Pressure | Up To 16 Kg/cm² |
| Mounting Type | Insertion Type |
| Ambient Temperature | –20°C To +75°C |
| Humidity | 5% To 95% RH (non-condensing) |
| Communication | RS-485 MODBUS RTU (Optional) |
| Electronic Protection | Weatherproof IP-68 |
| Connector | M12 Connector |
| Power Consumption | < 5 VA |
Features
Compact insertion-type flow meter
Suitable for conductive liquids
No pipe cutting or system shutdown required
Supports line sizes from DN 40 to DN 300
Typical accuracy ±0.5% of F.S.
Protection Class: IP-68
Local LCD display for real-time flow rate and totalizer
Rugged SS-316 construction for long-term reliability and corrosion resistance
Technical Specifications Performance Characteristics
Measuring Principle: Electromagnetic flow measurement
Media: Conductive liquids
Conductivity: > 5 µS/cm
Viscosity: up to 200 cP
Line Size: 40 NB to 300 NB
Accuracy: ±0.5% of F.S.
Response Time: 1 second
Display: Backlit LCD (6-digit flow rate, 8-digit totalizer)
Process Conditions
Process Temperature: up to 200°C
Process Pressure: up to 16 kg/cm²
Mounting Type: Insertion type
Process Connection: 1" BSP threaded
Ambient Conditions
Ambient Temperature: –20°C to +75°C
Humidity: 5% to 95% RH (non-condensing)
Output Signals
Analog Output: 4–20 mA
Pulse Output: Open Collector (Optional)
Relay Output: 1 Relay (Optional)
Communication: RS-485 MODBUS RTU (Optional)
Protection Class
Electronic Protection: Weatherproof IP-68
Sensor / Flow Tube Protection: Weatherproof IP-68
Electrical Connection
Connector: M12 Connector
Power Supply
Voltage Range: 18–30 VDC
Power Consumption: < 5 VA
Material of Construction
Electrode Materials: SS-316L
Retractable Assembly: SS-316
Wetted Parts: SS-316
Sensor Rod: SS-316
Electronics Enclosure: SS-316
