Leading Manufacturers, Exporters, Wholesaler, Distributor of CT100S Digital Conductivity Transmitter, CTT 100S Toroidal Conductivity Transmitter, DO 100S Digital Dissolved Oxygen Transmitter, PH 100S ORP Transmitter, TS2000 CT Conductivity Transmitter, TS2000 CTT Toroidal Conductivity Transmitter, TS2000 DO Dissolved Oxygen Transmitter, TS2000 Industrial PH Transmitter and UAC 100 Universal Analytical Controller from Pune.
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF |  View |
| Type | Conductivity Transmitter |
| Series | Electronet Series CT-100S |
| Input Type | From Conductivity Electrode |
| Output | 4–20 MA DC / 4–20 MA With HART (Generic) |
| Display | LCD With Backlight |
| Power Supply | 24V DC, Two-wire Loop Powered |
| Power Consumption | < 50 MW |
| Accuracy | ±0.25% F.S |
| Response Time | < 500 MSec |
| Isolation | 1.4 KV Between Input, Output & Power Supply |
| Temperature Coefficient | ±0.01% Per °C |
| Temperature Compensation | RTD PT-100 / PT-1000 (Auto / Manual) |
| Ambient Temperature | −20°C To 55°C |
| Ambient Humidity | 5% To 95% Non-condensing |
| Dimensions | 155 Mm (H) × 105 Mm (W) × 130 Mm (D) |
| Protection Class | Flameproof CMRI IIA IIB / Weatherproof IP-67 |
| Weight | Approx. 1 Kg |
| Flow Through Assembly | SS316 / PP |
Description

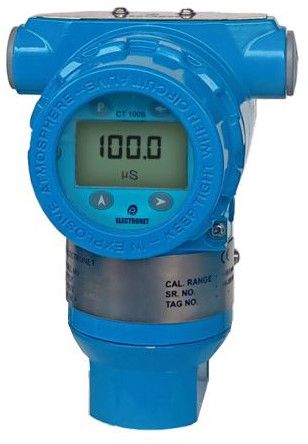

Electronet Series CT-100S are high-performance conductivity transmitters designed for a wide range of industrial applications.
They accept input from conductivity electrodes with cell constants 0.01 / 0.1 / 1, and convert the conductivity signal into a standard 4–20 mA output.
The unit provides clear on-line indication through a backlit LCD. Span and zero adjustments are easily accessible, ensuring user-friendly operation and quick calibration.
Features
On-line measurement
Non-volatile memory retains program settings during power failures
4–20 mA DC output / 4–20 mA with HART (Generic)
Auto / Manual temperature compensation
On-line indication through LCD display
Simple operating interface
2-wire system
Technical Specifications
Input
Type of Input: From conductivity electrode
Cell Constant: 0.01 / 0.1 / 1
Calibration Range:
0 to 99.99 µS/cm (Cell constant 0.01)
0 to 999.99 µS/cm (Cell constant 0.1)
0 to 9999.99 µS/cm (Cell constant 1)
Electrical
Power Supply: 24V DC, two-wire loop powered
Power Consumption: < 50 mW
Output: 4–20 mA DC / 4–20 mA with HART (Generic)
Accuracy: ±0.25% F.S
Response Time: < 500 mSec
Isolation: 1.4 kV between input, output & power supply
Display & Compensation
Display: LCD with backlight
Temperature Coefficient: ±0.01% per °C
Temperature Compensation: RTD PT-100 / PT-1000 (Auto / Manual)
Environmental Conditions
Ambient Temperature: –20°C to 55°C
Ambient Humidity: 5% to 95% non-condensing
Connections
Sensor Connection:
Through BNC connector
Through terminals
Conduit Entry:
M20 x 1.5 (F)
½" NPT (F)
Mechanical
Dimensions: 155 mm (H) × 105 mm (W) × 130 mm (D)
Mounting: 2" pipe mounting
Housing: Cast aluminum with epoxy coating, NEMA 4X / SS316
Protection Class: Flameproof CMRI IIA IIB / Weatherproof IP-67
Weight: Approx. 1 kg
Flow Through Assembly (Optional): SS316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Toroidal Conductivity / TDS Transmitter |
| Features | On-line Conductivity Measurement,Non-volatile Memory Retains Settings During Power Failure,4-20 MA DC Output / 4-20 MA With HART,Auto/manual Temperature Compensation,Clear LCD Display For Online Indication,Simple And User-friendly Operating Interface,2-wi |
| Input Type | Toroidal Conductivity Electrode |
| Calibration Range | 200 To 2,000,000 µS/cm |
| Power Supply | 24V DC, 2-wire Loop Powered |
| Power Consumption | < 50 MW |
| Display Type | LCD With Backlight |
| output signal | 4-20 MA DC / 4-20 MA With HART |
| Transmitter Accuracy | ±0.25% F.S. |
| Response Time | < 500 MSec |
| Temperature Coefficient | ±0.01% Per °C |
| Humidity | 5% To 95% RH |
| Isolation | 1.4 KV Between Input, Output & Power |
| Sensor Connection | BNC Connector,Terminal Connection |
| Conduit Entry | M20 X 1.5 (F),1/2 |
| Dimensions | 155 Mm (H) X 105 Mm (W) X 130 Mm (D) |
| Housing | Cast Aluminum With Epoxy Coating (NEMA 4X) / SS316 |
| Protection Class | Flameproof CMRI IA IIB / Weatherproof IP-65 |
| Weight | Approx. 1 Kg |
CTT 100S – Toroidal Conductivity / TDS Transmitter Description
Electronet Series CTT 100S is an advanced Toroidal Conductivity / TDS Transmitter designed for a wide range of industrial applications. It accepts input from a Toroidal Conductivity Electrode and converts the conductivity signal into a reliable 4–20 mA output (with optional HART).
The unit features an LCD display for real-time conductivity indication and offers easily accessible Zero/Span adjustments. Its rugged construction and precise measurement performance make it ideal for continuous online monitoring.
Features
On-line conductivity measurement
Non-volatile memory retains settings during power failure
4–20 mA DC output / 4–20 mA with HART (Generic)
Auto / manual temperature compensation
Clear LCD display for online indication
Simple and user-friendly operating interface
2-wire loop-powered system
Suitable for harsh industrial applications
Technical Specifications Input
Type: Toroidal Conductivity Electrode
Calibration Range: 200 to 2,000,000 µS/cm
Power
Supply: 24V DC, 2-wire loop powered
Power Consumption: < 50 mW
Display
Type: LCD with backlight
Output
Signal: 4–20 mA DC / 4–20 mA with HART (Generic)
Transmitter Accuracy: ±0.25% F.S.
Response Time: < 500 mSec
Temperature Coefficient: ±0.01% per °C
Temperature Compensation
Sensor: RTD PT-100 / PT-1000
Environmental Conditions
Ambient Temperature: Suitable for industrial environments
Humidity: 5% to 95% RH (non-condensing at 25°C)
Isolation: 1.4 kV between input, output & power
Connections
Sensor Connection:
BNC connector
Terminal connection
Conduit Entry:
M20 × 1.5 (F)
½" NPT (F)
Physical
Dimensions: 155 mm (H) × 105 mm (W) × 130 mm (D)
Mounting: 2" pipe mounting
Housing: Cast aluminum with epoxy coating (NEMA 4X) / SS316
Protection Class: Flameproof CMRI IA IIB / Weatherproof IP-65
Weight: Approx. 1 kg
Optional
Flow-through assembly: SS316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Dissolved Oxygen Transmitter |
| Input Type | From DO Electrode |
| output signal | 4–20 MA DC / 4–20 MA With HART (Generic) |
| Transmitter Accuracy | ±0.25% F.S. |
| Repeatability | ±0.05% Of Span At 25°C |
| Response Time | < 1000 MSec |
| Display Type | LCD Display |
| Calibration Range | 0 To 20.9 Ppm |
| Power Supply | 24V DC, Two-wire Loop Powered |
| Power Consumption | < 50 MW |
| Isolation | 1.4 KV Between Input, Output & Supply |
| Temperature Compensation | RTD PT-100 / PT-1000 |
| Temperature Coefficient | ±0.01% Per °C |
| Ambient Conditions | –20°C To 70°C / 5–95% RH |
| Dimensions | 155 Mm (H) × 105 Mm (W) × 130 Mm (D) |
| Mounting | 2” Pipe Mounting |
| Housing | Cast Aluminum With Epoxy Coating (NEMA 4X) / SS316 |
| Protection Class | Flameproof CMRI IIA IIB / Weatherproof IP-67 |
| Sensor Connection | BNC Connector, Terminal Connection |
| Electrical Conduit Entry | M20 × 1.5 (F), ½ |
Description
Electronet Series DO 100S is a high-performance Dissolved Oxygen Transmitter designed for reliable and continuous online measurement in industrial applications. It accepts input from a DO electrode and converts the signal into a standard 4–20 mA output (optional HART).
The transmitter includes an LCD display for real-time indication, while Zero/Span adjustments are easily accessible for quick calibration. Its rugged construction and user-friendly interface make it suitable for demanding process environments.
Features
Online dissolved oxygen measurement
Auto / manual temperature compensation
4–20 mA DC output / 4–20 mA with HART (Generic)
Clear LCD display for online indication
Simple operating interface with intuitive pictographs
2-wire loop-powered system
Ideal for continuous industrial monitoring
Technical Specifications
Input
Type: From DO Electrode
Output
Signal: 4–20 mA DC / 4–20 mA with HART (Generic)
Transmitter Accuracy: ±0.25% F.S.
Repeatability: ±0.05% of span at 25°C
Response Time: < 1000 mSec
Display
Type: LCD Display
Calibration Range: 0 to 20.9 ppm
Electrical
Power Supply: 24V DC, Two-wire loop powered
Power Consumption: < 50 mW
Isolation: 1.4 kV between input, output & supply
Temperature
Temperature Compensation: RTD PT-100 / PT-1000
Temperature Coefficient: ±0.01% per °C
Ambient Conditions: –20°C to 70°C / 5–95% RH (non-condensing at 25°C)
Physical
Dimensions: 155 mm (H) × 105 mm (W) × 130 mm (D)
Mounting: 2” pipe mounting
Weight: Approx. 1 kg
Housing: Cast aluminum with epoxy coating (NEMA 4X) / SS316
Protection Class: Flameproof CMRI IIA IIB / Weatherproof IP-67
Connections
Sensor Connection:
BNC connector
Terminal connection
Electrical Conduit Entry:
M20 × 1.5 (F)
½" NPT (F)
Optional
Flow-through Assembly: SS316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | ORP Transmitter |
| Application | Industrial |
| Power Supply | 24V DC, two-wire loop powered |
| Power Consumption | < 50 mW |
| Dimensions | 155 mm (H) × 105 mm (W) × 130 mm (D) |
| Output | 4-20mA |
| Temperature Range | 0-100°C |
| Display | LCD |
| Protection Class | Weatherproof IP-67 |
Description
Electronet Series pH-100S is an industrial-grade pH / ORP transmitter designed for accurate and continuous online measurement. It accepts input from any standard pH or ORP electrode, making it compatible with all major electrode brands.
The transmitter converts the signal into a standard 4–20 mA output (with optional HART). An LCD display provides real-time pH / ORP indication, while Zero/Span adjustments are easily accessible. Its user-friendly pictograph interface and rugged construction make it suitable for demanding industrial environments.
Features
Online pH / ORP measurement
2-wire loop-powered system
4–20 mA DC output / 4–20 mA with HART (Generic)
Auto / manual temperature compensation
Clear LCD display for on-line indication
Simple interface with intuitive pictographs
Easy installation
Compatible with any make of pH / ORP electrode
Technical Specifications
Input
Type: pH / ORP Electrode (compatible with any make)
Output
Signal: 4–20 mA / 4–20 mA with HART (Generic)
Accuracy:
pH: ±0.05 pH
ORP: ±3 mV
Repeatability: ±0.05% of span at 25°C
Response Time: < 1000 mSec
Temperature Coefficient: ±0.05% per °C
Display
Type: LCD Display
Range:
pH: 0 to 14 pH
ORP: ±2000 mV
Calibration
Method: 3-point buffer calibration
Temperature Compensation
Sensor: RTD PT-100 / PT-1000
Electrical
- Power Supply: 24V DC, two-wire loop powered
Power Consumption: < 50 mW
Isolation: 1.4 kV between input, output & power
Physical
Dimensions: 155 mm (H) × 105 mm (W) × 130 mm (D)
Mounting: 2" pipe mounting
Housing: Cast aluminum with epoxy coating (NEMA 4X) / SS316
Protection Class: Flameproof CMRI IIA IIB / Weatherproof IP-67
Weight: Approx. 1 kg
Connections
Sensor Connection:
BNC Connector
Terminal connection
Conduit Entry:
M20 × 1.5 (F)
½" NPT (F)
Optional
Flow-through assembly: SS316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Color | Silver |
| Type | Conductivity Transmitter |
| Material | SS-316 |
| Features | High Corrosion Resistance, IP-68 Protection, RS-485 Communication, 4-20 MA Output, Backlit LCD Display |
| Power Supply | 18-36V DC |
| Display | Local LCD With Backlit |
| Output | 4-20 MA |
| Communication | RS-485 MODBUS RTU |
| Accuracy | +/-0.25%F. S. |
| Response Time | 1Sec |
| Temperature Compensation | RTD PT-100 |
| Isolation | 1.4 KV |
| Electrical Connections | M12 Connector |
| Protection Class | Weather Proof IP-68 |
| Ambient Temperature | 55-316°C |
| Ambient Humidity | 5 To 95% Non-condensing At 25°C |
Description

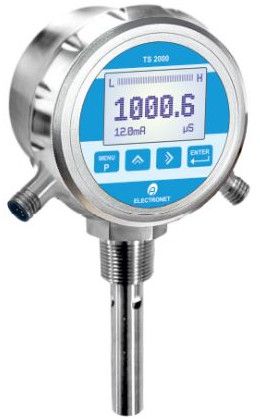

The TS2000 CT is an advanced Conductivity Transmitter with an optional switching output, designed for reliable online conductivity measurement in industrial environments. With its SS-316 enclosure, IP-68 protection, and support for both analog and MODBUS RTU communication, it offers durability, precision, and easy integration with modern control systems.
Its backlit LCD display, versatile mounting options, and support for remote or integral sensors make it ideal for harsh and demanding applications.
Features
SS-316 enclosure with high corrosion resistance
IP-68 protection for harsh environments
RS-485 (MODBUS RTU) communication (optional)
4–20 mA analog output
Bright backlit LCD display
Supports Remote / Integral Sensor connection
Rugged design for industrial applications
Technical Specifications
Input
Type: From Conductivity Electrode
Cell Constant: 0.01 / 0.1 / 1.0
Calibration Range (Factory Calibrated)
Cell Constant 0.01: 0 to 99.99 µS/cm
Cell Constant 0.1: 0 to 999.99 µS/cm
Cell Constant 1.0: 0 to 9999.99 µS/cm
Measuring Span
Maximum: 9999.99 µS/cm
Minimum: 99.99 µS/cm
Power
Supply: 18–36V DC
Power Consumption: < 5W
Display
Type: Backlit LCD
Output
Analog Output: 4–20 mA
Relay Output: 1 Relay (Optional)
Communication: RS-485 (MODBUS RTU) (Optional)
Performance
Transmitter Accuracy: ±0.25% F.S.
Response Time: 1 Second
Temperature Compensation: RTD PT-100
Isolation: 1.4 kV between Input, Output & Power
Connections
Sensor Connection: Remote or Integral
Electrical Connection: M12 Connector
Mounting
2" Pipe Mounting / Direct Line Mounting
Environmental
Protection: Weatherproof IP-68
Electronics Enclosure: SS-316
Ambient Temperature: –20°C to +60°C
Humidity: 5% to 95% RH (Non-condensing at 25°C)
Optional
Flow-through Assembly: SS-316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Conductivity Transmitter |
| Material | SS-316 |
| Features | SS-316 Enclosure With High Corrosion Resistance, IP-68 Protection, RS-485 Communication, 4–20 MA Analog Output, Backlit LCD Display, Supports Remote/Integral Sensor Connection |
| Input Type | Toroidal Conductivity Electrode |
| Output Type | 4–20 MA DC Output |
| Communication Output | RS-485 MODBUS RTU |
| Display | Local Backlit LCD |
| Calibration Range | 200 To 2,000,000 µS/cm |
| Maximum Measuring Span | 2,000,000 µS/cm |
| Accuracy | ±0.25% F.S. |
| Isolation | 1.4 KV Between Input, Output & Power Supply |
| Electrical Connections | M12 Connector |
| Sensor Connection | Remote Or Integral |
| Power Supply | 24V DC |
| Power Consumption | < 5W |
| Response Time | 1 Second |
| Temperature Coefficient | ±0.01% Per °C |
| Temperature Compensation | RTD PT-100 |
| Electronics Enclosure | SS-316 |
| Protection Class | Weatherproof IP-68 |
| Mounting | 2 |
| Ambient Temperature | –20°C To +60°C |
| Ambient Humidity | 5% To 95% (non-condensing) |
TS2000 CT – Conductivity Transmitter Switch Features
SS-316 enclosure with high corrosion resistance
IP-68 protection for harsh industrial environments
RS-485 (MODBUS RTU) communication (optional)
4–20 mA analog output
Backlit LCD display for clear visibility
Supports Remote / Integral sensor connection
Technical Specifications Performance Characteristics
Type of Input
Toroidal Conductivity Electrode
Type of Output
4–20 mA DC Output
Relay Output
1 Relay (Optional)
Communication Output
RS-485 MODBUS RTU (Optional)
Display
Local backlit LCD
Calibration Range
200 to 2,000,000 µS/cm
Maximum Measuring Span
2,000,000 µS/cm
Accuracy
±0.25% F.S.
Isolation
1.4 kV between input, output & power supply
Electrical & Connection
Electrical Connections
M12 Connector
Sensor Connection
Remote or Integral
Power Supply
24V DC
Power Consumption
< 5W
Response Time
1 Second
Temperature Coefficient
±0.01% per °C
Temperature Compensation
RTD PT-100
Mechanical & Environmental
Electronics Enclosure
SS-316
Protection Class
Weatherproof IP-68
Mounting
2" Pipe Mounting
Ambient Temperature
–20°C to +60°C
Ambient Humidity
5% to 95% (non-condensing)
Flow-Through Assembly (Optional)
SS-316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Dissolved Oxygen Transmitter |
| Material | S-316 Stainless Steel |
| Color | Silver |
| Communication Output | RS-485 (MODBUS RTU) |
| Display | Backlit LCD |
| Calibration Range | 0 To 20.9 Ppm |
| Accuracy | +/-0.25% F.S. |
| Repeatability | +/-0.05% Of SPAN |
| Isolation | 1.4 KV |
| Electrical Connections | M12 Connector |
| Power Supply | 18-36 VDC |
| Power Consumption | <5W |
| Response Time | 1 Sec |
| Temperature Coefficient | +/-0.01% Per °C |
| Temperature Compensation | RTD PT-100 |
| Electronics Enclosure | Weather Proof IP-68 |
| Ambient Temperature | 20°C To 75°C |
| Ambient Humidity | 5% To 95% Non-condensing |
Features
SS-316 enclosure with high corrosion resistance
IP-68 protection for harsh environments
RS-485 (MODBUS RTU) communication (Optional)
4–20 mA analog output
Backlit LCD display
Easy to install
Suitable for industrial DO measurement applications
Technical Specifications
Performance Characteristics
Input
Type: DO Electrode
Output
Analog Output: 4–20 mA DC
Relay Output: 1 Relay (Optional)
Communication: RS-485 MODBUS RTU (Optional)
Display
Type: Local LCD display with backlight
Calibration Range: 0 to 20.9 ppm
Accuracy & Repeatability
Transmitter Accuracy: ±0.25% F.S.
Repeatability: ±0.05% of span at 25°C
Response Time: 1 sec
Temperature Coefficient: ±0.01% per °C
Temperature Compensation
Sensor: RTD PT-100
Electrical
Electrical Connections: M12 Connector
Sensor Connection: Remote (5-meter cable)
Power Supply: 18–36 V DC
Power Consumption: < 5W
Isolation: 1.4 kV between input, output & power
Mechanical & Environmental
Electronics Enclosure: SS-316
Protection Class: Weatherproof IP-68
Mounting: 2" Pipe Mounting
Ambient Temperature: –20°C to 75°C
Ambient Humidity: 5% to 95% RH (Non-condensing)
Flow-Through Assembly (Optional): SS-316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |

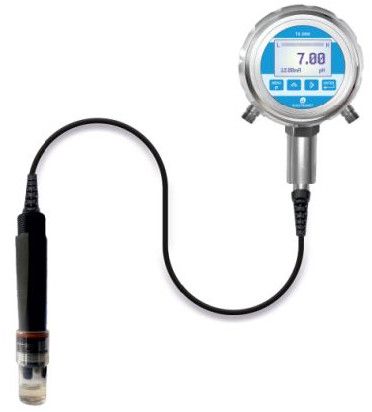

| Type | PH Transmitter |
| Material | SS-316 |
| Features | High Corrosion Resistance,IP-68 Protection For Harsh Industrial Environments,RS-485 (MODBUS RTU) Communication (Optional),4–20 MA Analog Output,Backlit LCD Display,Easy To Install,Suitable For Industrial Online PH Measurement |
| Input Type | PH Electrode |
| Analog Output | 4–20 MA |
| Alarm / Relay Output | 1 Relay (Optional) |
| Communication Output | RS-485 MODBUS RTU (Optional) |
| Display Type | Backlit LCD |
| Calibration Range | 0 To 14 PH |
| Calibration Method | 3-Point Buffer |
| Temperature Compensation Sensor | RTD PT-100 |
| Transmitter Accuracy | ±0.05 PH At 25°C |
| Repeatability | ±0.05% Of Span |
| Response Time | 1 Sec |
| Temperature Coefficient | ±0.05% Per °C |
| Electrical Connections | M12 Connector |
| Power Supply | 18–36 VDC |
| Power Consumption | < 5W |
| Isolation | 1.4 KV Between Input, Output & Power |
| Electronic Enclosure | SS-316 |
| Protection Class | Weatherproof IP-68 |
| Sensor Connection | BNC Connector |
| Mounting | Pipe Mounting / Wall Mounting |
| Weight | < 3 Kg |
| Ambient Temperature | -20°C To 75°C |
| Ambient Humidity | 5% To 95% RH (Non-condensing) |
Features
SS-316 enclosure with high corrosion resistance
IP-68 protection for harsh industrial environments
RS-485 (MODBUS RTU) communication (Optional)
4–20 mA analog output
Backlit LCD display
Easy to install
Suitable for industrial online pH measurement
Technical Specifications
Performance Characteristics
Input
Type of Input: pH Electrode
Output
Analog Output: 4–20 mA
Alarm / Relay Output: 1 Relay (Optional)
Communication Output: RS-485 MODBUS RTU (Optional)
Display
Type: Backlit LCD
Calibration Range: 0 to 14 pH
Calibration Method: 3-Point Buffer
Temperature Compensation
Sensor: RTD PT-100
Accuracy & Response
Transmitter Accuracy: ±0.05 pH at 25°C
Repeatability: ±0.05% of Span
Response Time: 1 sec
Temperature Coefficient: ±0.05% per °C
Electrical
Electrical Connections: M12 Connector
Power Supply: 18–36 VDC
Power Consumption: < 5W
Isolation: 1.4 kV between input, output & power
Mechanical & Environmental
Electronic Enclosure: SS-316
Protection Class: Weatherproof IP-68
Sensor Connection: BNC Connector
Mounting: Pipe Mounting / Wall Mounting
Weight: < 3 kg
Ambient Temperature: –20°C to 75°C
Ambient Humidity: 5% to 95% RH (Non-condensing)
Flow-Through Assembly (Optional): SS-316 / PP
| Business Type | Manufacturer, Exporter, Supplier |
| Product PDF | View |
| Type | Universal Analyzer Controller |
| Supported Sensors | PH, ORP, Conductivity, DO Electrodes |
| Display Type | LCD Display |
| Analog Output | 4-20 MA DC |
| Relay Outputs | 1 Relay Or 2 Relays (Programmable) |
| Communication | RS-485 Serial Communication |
| Power supply options | 24V DC, 90-250V AC, 50 Hz |
| Enclosure Type | Weatherproof IP-65 |
| Enclosure material | Die-cast Aluminium |
| Electrical Power Consumption | < 10 VA |
| Temperature Compensation | Through RTD PT-100 |
| Temperature Coefficient | 0.01% Per °C |
| Dimensions | 155 Mm (H) X 155 Mm (W) X 126 Mm (D) |
| Weight | Approx. 1.5 Kg |
| Operating Temperature | -20°C To 55°C |
| Humidity | 5% To 95% RH (non-condensing) |

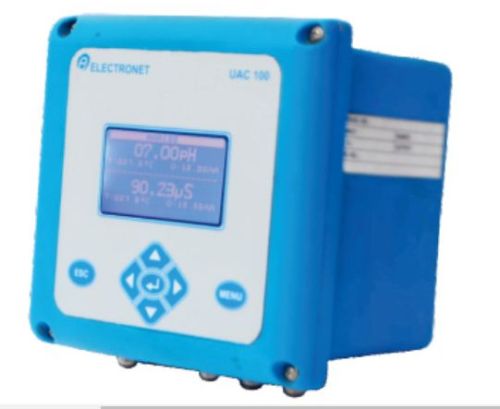

UAC 100 – Universal Analyzer Controller Description
Electronet Series UAC 100 is a versatile dual-input Universal Analyzer Controller designed for multi-parameter measurement in industrial applications. It supports single or dual sensor input and accepts pH, ORP, Conductivity, and Dissolved Oxygen (DO) electrodes in any combination.
The high-contrast backlit LCD provides live measurement readouts with large digits while displaying up to four additional process variables.
The analyzer includes two isolated 4–20 mA outputs, programmable alarms/relays, user-friendly software calibration, and inbuilt data logging. Output damping can also be programmed from 0 to 50 seconds to ensure stable readings.
Features
Single / Dual channel sensor input
Backlit LCD display
Dual 4–20 mA current output
Inbuilt memory for data logging
Auto / Manual temperature compensation
Programmable alarms / relays
Software calibration
Accepts input from pH / ORP / Conductivity / DO electrodes
Technical Specifications General
Number of Channels: Single / Dual
Input Source:
From pH, ORP, Conductivity, or DO Electrode
(Compatible with any make of industrial electrode)
Display
Type: LCD Display
Measured Parameters:
pH: 0 to 14 pH
ORP: –2000 to +2000 mV
Temperature: 0 to 150°C
DO: 0 to 20.9 ppm
Conductivity: 0.01 µS/cm to 10 mS/cm
Accuracy
pH: ±0.02 pH
ORP: ±2 mV
DO: ±0.25% of F.S.
Conductivity: ±0.25% of F.S.
Temperature: ±0.25% of F.S.
Power Supply
Options:
24V DC (±10%)
90 to 250V AC, 50 Hz
Enclosure
Type: Weatherproof IP-65
Material: Die-cast Aluminium
Outputs
Analog Output:
4–20 mA DC
4–20 mA DC with HART (Optional for one channel only)
Relay Outputs:
1 Relay or 2 Relays (Programmable)
Communication:
RS-485 Serial Communication
Electrical & Performance
Power Consumption: < 10 VA
Temperature Compensation: Through RTD PT-100
Temperature Coefficient: 0.01% per °C
Response Time:
pH: 5 sec (to 100% of reading)
ORP: 5 sec
Conductivity: 3 sec
DO: 6 sec
Isolation: 1.4 kV between input, output & power supply
Mechanical
Dimensions: 155 mm (H) × 155 mm (W) × 126 mm (D)
Cutout Size: 144 mm (H) × 144 mm (W)
Mounting: Panel / Pipe Mounting
Weight: Approx. 1.5 kg
Environmental Conditions
Operating Temperature: –20°C to 55°C
Humidity: 5% to 95% RH (non-condensing)
