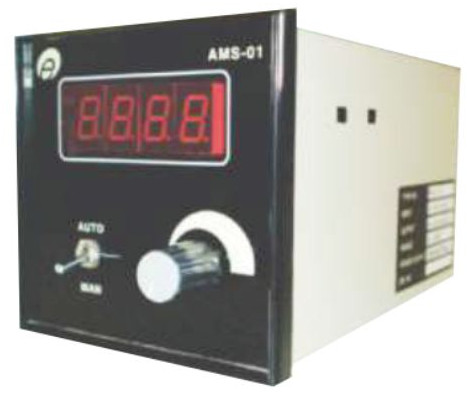

AMS01 Industrial Auto Manual Station

• Source 4–20 mA DC in Manual Mode

• Sink 4–20 mA DC in Auto Mode

• Bumpless output transfer

• Auto/Manual selection through front panel switch

• Compact size with easy maintenance

Electronet series AMS-01 Auto/Manual Stations are designed for precise signal control in various industrial applications.
The output can be easily adjusted using the front-mounted potentiometer, and the instrument offers smooth (bumpless) transfer between Auto and Manual modes.
It provides reliable, stable, and user-friendly signal conditioning for process control systems.

• Input (Auto Mode): 4–20 mA DC

• Output: 4–20 mA DC

• Display: LED Display

• Accuracy: ±0.25% of F.S.

• Linearity: ±0.25%

• Repeatability: ±0.25%

• Response Time: < 100 ms

• Temperature Coefficient: ±0.01% per °C

• Power Supply:

  • 90–250 V AC, 50 Hz

  • 24 V DC

• Power Consumption: < 6 W

• MOC – Enclosure: Sheet Steel, Powder Coated

• Bezel Size Options:

  1. 144 (H) × 72 (W) × 200 (D) mm (DIN Standard)

  2. 96 (H) × 96 (W) × 160 (D) mm (DIN Standard)

• Mounting: Panel Flush Mount

• Temperature: –20°C to 75°C

• Humidity: 5% to 95% RH (non-condensing)
