Level Transmitter

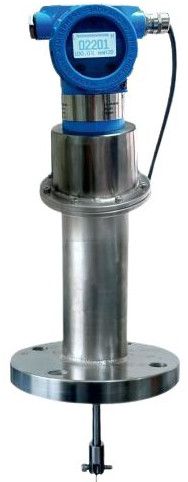

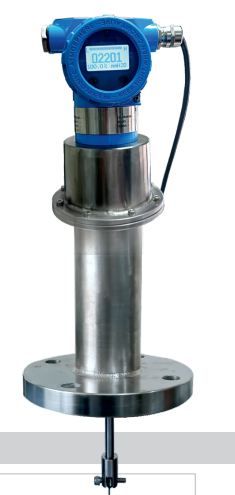

DLT-200 Displacer Type Level Transmitter Features

• Two-wire level transmitter

• Digital LCD display

• Hall-effect based non-contact design

• EMI / EMC compliant

• Seismically qualified

• Suitable for clean and dirty liquid level measurement

  Description

The Electronet DLT-200 Displacer Type Level Transmitter operates on the Archimedes principle of buoyancy, using a displacer integrated with Hall-effect sensing technology.
As the liquid level changes, the displacer moves vertically due to variations in buoyant force. This displacement is sensed by a non-contact Hall-effect sensor, and the built-in microcontroller converts the movement into a standard 4–20 mA output (HART optional).
This makes the DLT-200 ideal for reliable and accurate continuous level measurement in a wide range of industrial applications.

  Technical Specifications General

• Type: Displacer type level transmitter

• Transmitter Configuration:

  1. Local

  2. Remote (up to 3 m)

  Electrical

• Output (Two-Wire): 4–20 mA with superimposed HART (optional)

• Supply Voltage: 12.5–45 VDC

• Signal Range: 3.9 mA to 20.8 mA

• Insulation Resistance: > 100 MΩ at 100 VDC

• Electrical Termination: Terminal block for 1.5 sq.mm cable

• Cable Gland: Single compression SS cable gland

• Conduit Entry: Suitable for 14 mm OD cable

  Measurement

• Range of Measurement:

  • Standard: 100 mm to 3000 mm (Exact range to be specified)

  • Higher ranges available on request

• Sensing Technology: Hall-effect sensor

• Accuracy (including repeatability, drift, zero error): ±1% of F.S.

  Display

• Display Type: LCD

• Visible Area: 32.5 × 22.5 mm

• Main Display: 5-digit

• Digit Height: 8 mm

• Bar Graph: 51 segments

  Mechanical Construction

• Displacer Material: SS-316 (others on request)

• Spring Material: Inconel (others on request)

• Wetted Parts: SS-316 (others on request)

• Transmitter Housing:

  • Die-cast aluminium / Stainless Steel (options available)

• Process Connection:

  1. Flanged

  2. Threaded

  3. Socket weld
     (details to be specified)

• Gasket Material: EPDM (other options available)

• Accessories (Optional):

  • Perforated type stilling well

  • External chamber

• Accessories Material: MS / SS-304 / SS-316 / others

  Environmental

• Enclosure Protection: IP-65 (higher protection on request)

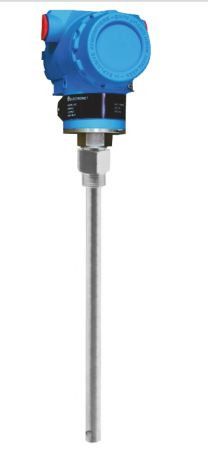

LGWR-40 Guided Wave Radar (TDR) Level Transmitter Features

•


  Unmatched price-to-performance ratio





•


  Precise continuous level measurement + reliable point level detection in one device





•


  Fully modular probe design — probes are interchangeable without special tools or welding





•


  Complete galvanic isolation of electronics from tank/sensor potential
  (eliminates electrochemical corrosion issues)





•


  Highly robust measurement using advanced 4-wire design





•


  Innovative signal processing with disturbance suppression





•


  Suitable for challenging liquid applications and difficult tank geometries




Description

The Electronet ELGWR-40 is a 4-wire TDR (Time Domain Reflectometry) guided wave radar level transmitter designed for continuous level measurement and point level detection in liquids. It supports both single-rod and coaxial probes, enabling flexible use across a wide variety of applications.

The device emits low-energy, high-frequency electromagnetic pulses along the inserted probe. When these pulses strike the liquid surface, part of the signal is reflected back. The transmitter measures the time difference between emitted and reflected pulses to calculate the level.
The ELGWR-40 provides both analog output for continuous level and switching outputs for point detection.

Measurement Principle

•


  TDR-based high-frequency pulse reflection





•


  Probe immersed in liquid conducts the EM signal





•


  Reflected signal is analyzed for precise level calculation





•


  Outputs available:





  •


    Continuous analog level (4–20 mA)





  •


    Configurable switching outputs








Application Area

The ELGWR-40 supports reliable level measurement in nearly all liquids, regardless of:

•


  Density





•


  Conductivity





•


  Pressure





•


  Temperature





•


  Vapors





•


  Turbulence




It is ideal for:

•


  Storage tanks and process vessels





•


  Narrow nozzles and tall chambers





•


  Bypass chambers and stilling wells





•


  Liquids with low dielectric constant (oils, hydrocarbons)




The device offers exceptional reliability even near internal tank obstructions or in complex tank geometries.

Sensor Components & Probe Types

The ELGWR-40 consists of three modular elements:

1. Housing

•


  Contains electronics and I/O terminals





•


  No contact with tank atmosphere




2. Feed-Through Assembly

•


  Metal bushing secures the device to tank





•


  Guides HF measurement signal into tank





•


  Universal design — fits all probe types




3. Probe

Two modular probe options:

Single-Rod Probe

•


  Wide application range





•


  Slightly larger signal detection radius





•


  Suitable for bypass chambers / stilling wells





•


  Better for general-purpose industrial liquids




Coaxial Probe

•


  Fully contained HF signal





•


  Immune to external disturbances





•


  Ideal for low dielectric liquids (oils/hydrocarbons)





•


  Suitable for “drop-in anywhere” installation





•


  Not suitable for sticky, viscous, fibrous, slurry, crystallizing or particle-containing liquids




The modular design allows switching between probe types simply by adding or removing the coaxial outer tube.

ELGWR-40 Summary

•


  High accuracy guided wave radar





•


  Suitable for harsh industrial environments





•


  Flexible modular probe architecture





•


  Reliable measurement even with difficult tank geometries





•


  Ideal for low-reflectivity media

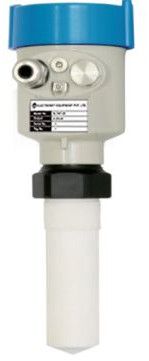

ELTAR-20 Radar Level Transmitter Features

Self-adjusting tracking radar technology
Simple push-button calibration
4–20 mA / 20–4 mA output (isolated on 4-wire models)
Diagnostics and data logging software
PLC compatible (MODBUS RTU)
Two-wire or four-wire operation
Fully programmable
Suitable for liquids, solids, tanks, silos, and reactors

Description

Electronet ELTAR-20 is a high-frequency radar level transmitter designed for accurate and reliable level measurement in industrial applications. It supports a measuring distance of up to 30 meters. Its optimized antenna and advanced microprocessor provide superior signal analysis, making it suitable for reactors, solid silos, and complex environments with steam, dust, or turbulence.

Technical Specifications Electrical & Enclosure

Electrical Connection: ½" NPT (F) × 2, M20 × 1.5 (F)
Enclosure Material: Aluminum or Stainless Steel (94V0)
Ingress Protection: NEMA 4 / 4X (IP67)
Installation Category: Class II

Operating Conditions

Temperature Limits:
• PP Rod: –40 to +190°F (–4 to +88°C)
• PTFE Rod: –40 to +350°F (–40 to +177°C)
Maximum Pressure: 3 bar
Operation Principle: Pulse Radar (26 GHz)

Electrical Specifications

Power Supply:
• 24V DC (±10%)
• 24V DC two-wire loop powered
Transmitter Power: 50 µW average
Accuracy:
• ±0.1% of max range (lab)
• ±0.25% of max range (field)
Outputs: 4–20 mA / 20–4 mA (isolated on 4-wire)
Communication: MODBUS RTU

Calibration & Diagnostics

Calibration: Via communication port
Diagnostics: Echo profile available via communication port

Antenna & Construction

Antenna Options:
• PTFE dielectric rod
• SS316 horn antenna for low dielectric materials
Probe Material: PP / PTFE / SS316 depending on antenna type

Local Indication

Display: LCD

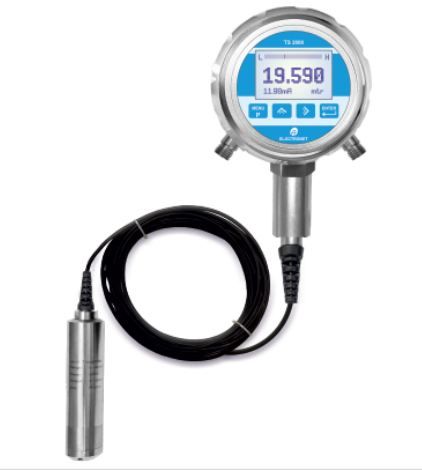

HLT-22 Hydrostatic Level Transmitter Features

Piezo resistive sensor
Measuring range up to 500 meters
Pressure range from 0.4 to 50 bar
Ingress protection IP68
Overload-resistant construction
4–20 mA two-wire output
Reliable and cost-effective operation
Simultaneous level and temperature measurement (optional PT100 sensor)
Suspension clamp and cable gland (optional)
Compact, durable, and maintenance-free design

Description

Electronet HLT-22 series level transmitters are designed for fast, easy, and trouble-free installation. These transmitters provide a stable 4–20 mA output proportional to the liquid level, operating on a 24 VDC power supply. All wetted parts are made from stainless steel, ensuring long-term durability.
The transmitter is suitable for wastewater, sludge, saltwater, and general industrial applications. Specialized non-metallic versions are also available for corrosive media.

Technical Specifications Sensor & Measurement

Sensor Type: Piezo resistive
Maximum Measuring Range: 0 to 500 meters
Pressure Range: 0.4 to 50 bar
Output Signal: 4–20 mA DC, 2-wire
Output Load: 600 ohms
Accuracy: ±0.25% F.S.
Overpressure Safety: 1.5 × maximum pressure
Burst Pressure: 2 × maximum pressure
Response Time:

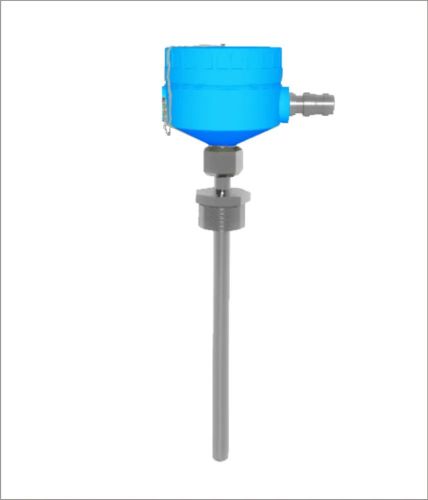

LCT-01 Capacitance Level Transmitter Features

Two-wire system
4–20 mA DC output
Weatherproof IP67 electronics protection
Reliable measurement of conductive and non-conductive liquids, slurries
Fast, stable and maintenance-free operation

Description

Electronet LCT-01 Series are capacitance-type level transmitters used for continuous level measurement in tanks and vessels. The probe and vessel wall form the two electrodes of a capacitor. For non-conductive vessels, a double-rod probe design is used.

As the level of material changes, the dielectric constant between the probe and vessel wall changes. Air has a dielectric constant of 1, while liquids have values greater than 1. This variation in dielectric constant changes the capacitance value, which is converted into a proportional 4–20 mA output representing the level.
The transmitter offers a stable, accurate and drift-free measurement, suitable for liquids, powders and slurries.

Technical Specifications Probe & Measurement

Probe Length:
• Up to 15 meters
• Single Rod (up to 2000 mm)
• Coaxial Probe (up to 2000 mm)
• Rope Type Probe (above 2000 mm)

Measuring Range: Level measurement as per probe length
Accuracy: ±1% F.S.
Linearity: ±1%
Response Time:

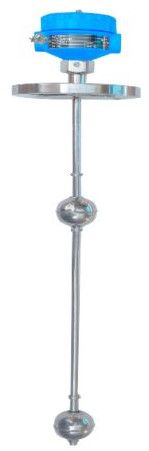

LMS-01 Magnetic Float Level Switch Features

Simple, low-cost, and highly reliable
Suitable for conductive and non-conductive liquids and slurries
Potential-free relay contact output
Weatherproof IP67 protection
Flameproof version available (CMRI IIA IIB certified)
Maintenance-free operation

Description

Electronet LMS-01 series are magnetic float-operated level switches designed for accurate point-level detection.
The switch consists of a non-magnetic guide tube and a float containing a permanent magnet. As the liquid level changes, the float moves along the guide tube and actuates hermetically sealed reed switches located inside the tube.
This magnetic actuation provides reliable switching at preset level points, making LMS-01 ideal for tanks containing liquids, chemicals, and slurries.

Technical Specifications Measurement

Measuring Range: 100 mm to 2000 mm
Probe Diameter: ID 21 mm, OD 25 mm
Accuracy: ±2% F.S.

Process Conditions

Process Temperature: up to 100°C
Process Pressure: up to 10 kg/cm²
Mounting: Top of the tank

Material of Construction

Probe / Transducer MOC:
• SS316
• PTFE
• Hastelloy C
• PP

Output

Type of Output: Potential-free relay contact (1 no.)
Contact Rating: 1 C/O, 1 Amp
Output Configuration: 1 NO + 1 NC

Electrical

Power Supply: 24 VDC (±10%)
Response Time:

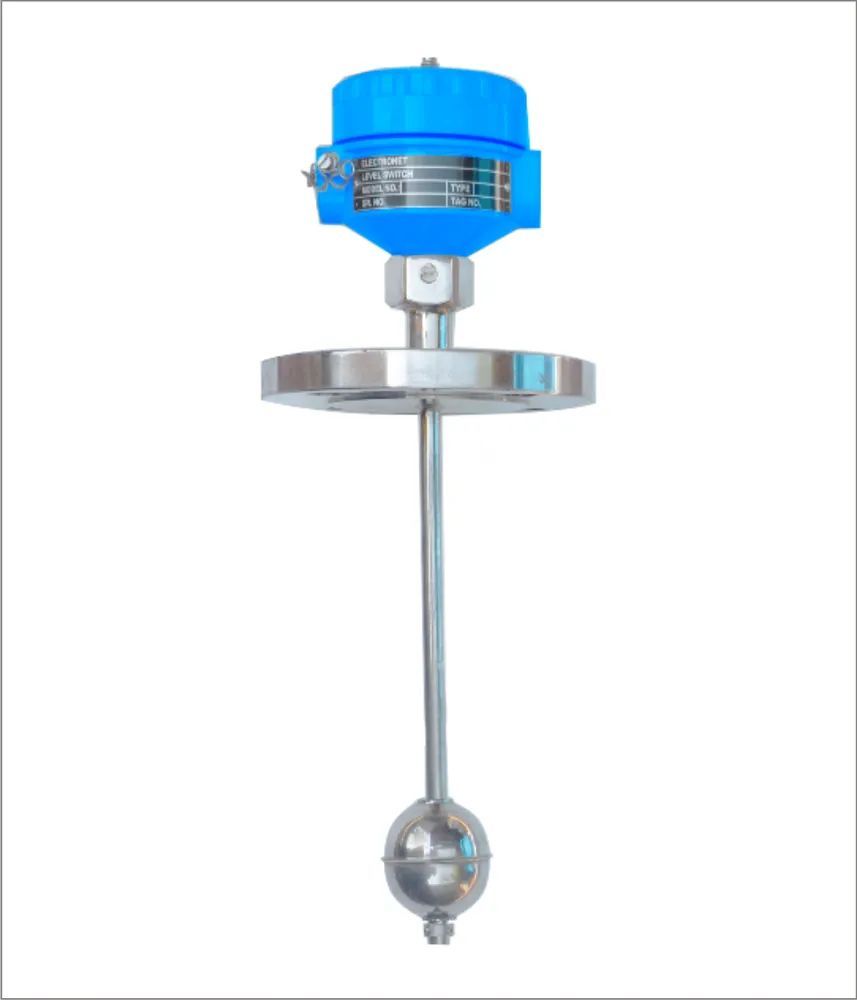

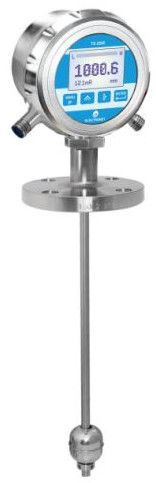

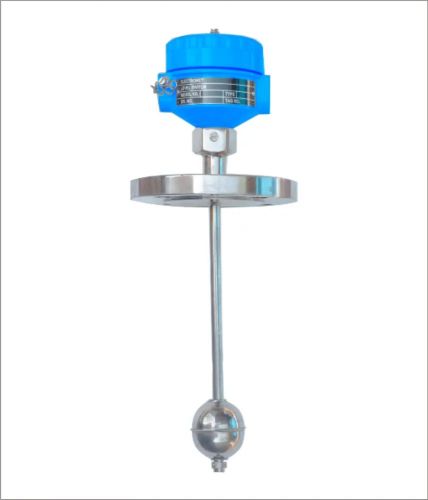

LMT-01 Magnetic Float Level Transmitter Features

Simple, low-cost, and reliable
Suitable for conductive and non-conductive liquids and slurries
Continuous 4–20 mA DC output
2-wire loop-powered system
Weatherproof IP67 protection
Flameproof CMRI IIA IIB certified (optional)
Maintenance-free operation

Description

Electronet LMT-01 series are magnetic float-operated level transmitters designed for continuous level measurement.
The system consists of a non-magnetic guide tube and a float containing a magnetic assembly. As the liquid level changes, the float moves along the guide tube and actuates hermetically sealed reed switches inside.
This sequential actuation creates a proportional 4–20 mA DC signal, enabling smooth and accurate level indication.
The robust construction and reliable sensing mechanism make the LMT-01 suitable for a wide range of industrial level-measurement applications.

Technical Specifications Measurement

Probe Length: As required (max. 2 meters)
Probe Type: Single Rod (up to 2000 mm)
Accuracy: ±10 mm
Linearity: ±0.5% for 3 m probe length

Process Conditions

Process Temperature: up to 55°C
Process Pressure: up to 10 kg/cm²
Mounting: Top of the tank

Material of Construction

Probe / Transducer MOC:
• SS316
• PTFE
• Hastelloy C
• PP

Float MOC: SS or PP (factory selected based on fluid)
Float Dimensions: Dia 54 mm × Height 106 mm

Electrical

Output: 4–20 mA DC (2-wire)
Power Supply: 24 VDC (±10%), loop powered
Response Time:

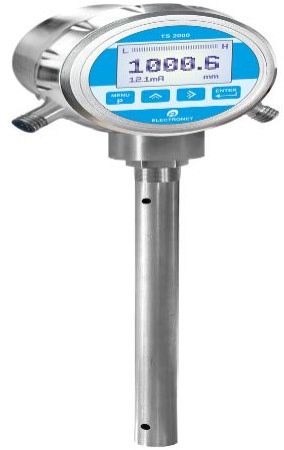

Capacitance Type Level Transmitter  Features

•


  Capacitance-type level transmitter





•


  Suitable for conductive and non-conductive liquids





•


  Durable SS-316 enclosure for excellent corrosion resistance





•


  IP-68 protection for harsh, wet, and outdoor environments





•


  Backlit LCD display for clear visibility





•


  Switch functionality for versatile control and monitoring





•


  RS-485 (MODBUS RTU) communication for effortless system integration and remote access




Technical Specifications Performance Characteristics

•


  Measuring Range: 100 mm to 15000 mm





•


  Probe Types:





  •


    Single Rod (up to 2000 mm)





  •


    Coaxial (up to 2000 mm)





  •


    Rope Type (above 2000 mm)









•


  Output: 4–20 mA





•


  Relay Output: 1 Relay (Optional)





•


  Communication: RS-485 MODBUS RTU (Optional)





•


  Accuracy: ±1% F.S.





•


  Linearity: ±1%





•


  Response Time: 1 second





•


  Temperature Coefficient: ±0.01% per °C




Process Conditions

•


  Process Temperature: Up to 200°C





•


  Process Pressure: Up to 16 kg/cm²





•


  Operating Temperature: –20°C to specified limit





•


  Humidity: 5% to 95% non-condensing




Construction

•


  Probe Material: PTFE + SS-316





•


  Electronics Enclosure: SS-316





•


  Protection Class: IP-68 (Weatherproof)





•


  Electrical Connection: M12 Connector





•


  Display: Backlit LCD




Power

•


  Power Supply: 18–36 VDC





•


  Power Consumption:

Features

•


  Piezo resistive sensor





•


  Measuring range up to 500 meters





•


  Pressure range 0.4 to 10 bar





•


  IP-68 ingress protection





•


  Simultaneous level & temperature measurement with optional PT100 sensor





•


  Optional suspension clamp & cable gland





•


  SS-316 enclosure ensuring corrosion-resistant, long-life operation





•


  IP-68 protection suitable for harsh, wet, and submerged applications




Technical Specifications Performance Characteristics

•


  Sensor Type: Piezo Resistive





•


  Max Measuring Range: 0 to 500 m





•


  Pressure Range: 0.4 to 10 bar





•


  Display: Backlight LCD





•


  Output: 4–20 mA DC





•


  Relay Output: 1 Relay (Optional)





•


  Communication Output: RS-485 MODBUS RTU (Optional)





•


  Output Load: 600 Ohm





•


  Accuracy: ±0.25% F.S.





•


  Non-Linearity:

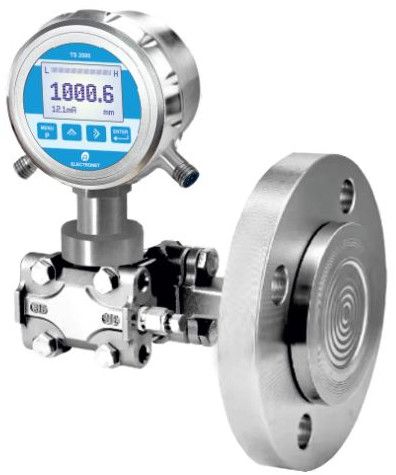

Hydrostatic Level Transmitter Features

• Hydrostatic pressure–based level measurement for accurate and continuous monitoring

• Backlit LCD display for clear visibility in low-light environments

• SS-316 stainless steel housing ensures excellent corrosion resistance and long-term durability

• IP-68 protection suitable for submersible and harsh industrial environments

• Switch functionality for versatile process control and monitoring

Technical Specifications Performance Characteristics

• Maximum Pressure Range: 2 kg/cm²

• Measuring Range: Up to 20 meters

• Power Supply: 18–36 VDC

• Display: Backlit LCD

• Accuracy: ±0.25% F.S.

• Non-Linearity: 0.2% of Span

• Non-Repeatability: <0.1% of Span

• Response Time: 1 sec

• Overpressure Safety: 1.5× max pressure range

• Burst Pressure: 3× max pressure range

Outputs

• Analog Output: 4–20 mA

• Relay Output: 1 Relay (Optional)

• Communication Output: RS-485 MODBUS RTU (Optional)

• Output Lower Limit: 3.7 mA

• Output Upper Limit: 23 mA

Electrical & Enclosure

• Electrical Connection: M12 Connector

• Enclosure: Weatherproof IP-68

• Electronics Enclosure Material: SS-316

• Insulation Resistance: >100 MΩ at 100 VDC

Process & Environmental Conditions

• Process Temperature: Up to 120°C

• Ambient Conditions:

  • Temperature: –20°C to specified upper limit

  • Humidity: 5% to 95% non-condensing

Mechanical Details

• Process Connection: As per ordering information

• Mounting: Direct line mount

• Wetted Parts: SS-316

• Electronics Enclosure & Rating: SS-316, IP-68

• Weight: Less than 5 kg

TS 2000 LMT – Magnetic Float Level Transmitter Features

Simple, low-cost, and highly reliable
Suitable for conductive and non-conductive liquids and slurries
Continuous 4–20 mA DC output
Weatherproof IP-67 protection
Flameproof CMRI IIA IIB certified (optional)
Non-contact magnetic operation ensures long life and low maintenance

Description

Electronet series TS 2000 LMT are magnetic float-operated level transmitters designed for continuous and accurate level measurement.
The system consists of a non-magnetic guide tube and a float containing a magnetic assembly. As the level changes, the float moves and actuates hermetically sealed reed switches inside the guide tube.
This movement generates a proportional 4–20 mA DC output, providing a reliable and noise-free continuous level signal.
The rugged construction ensures dependable performance for liquids, chemicals, and slurries across various industrial applications.

Technical Specifications Measurement

Probe Length: As required (max. 2 meters)
Probe Type: Single Rod (up to 2000 mm)
Accuracy: ±10 mm
Linearity: ±0.5% for 3 m probe length
Response Time:

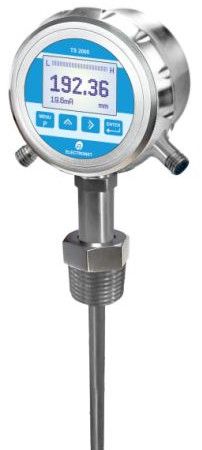

Features

• Wetted parts made from corrosion-resistant stainless steel

• Suitable for a wide range of homogeneous process media, including low-conductivity liquids (>5 µS/cm)

• SS-316 enclosure ensures excellent durability and corrosion resistance

• IP-68 protection for reliable performance in harsh and wet environments

• Backlit LCD display for clear visibility

• Switch functionality for flexible control and monitoring

• RS-485 (MODBUS RTU) communication for seamless integration and remote monitoring

  Technical Specifications Performance Characteristics

• Measuring Principle: Potentiometric level measurement

• Measuring Range: 200 to 3000 mm

• Conductivity Requirement: >5 µS/cm

• Response Time: 1 sec

• Accuracy: ±0.25% F.S.

• Repeatability: ±0.1%

• Process Temperature: Up to 200°C

• Process Pressure: 16 kg/cm² max

Process Interface

• Process Connection: 1" BSP (Male Threading)

• Mounting: Bottom mounted / Top mounted

Environmental Conditions

• Ambient Temperature: –20°C to 75°C

• Ambient Humidity: 5% to 95% RH, non-condensing

Outputs

• Analog Output: 4–20 mA

• Relay Output: 1 Relay (Optional)

• Communication Output: RS-485 MODBUS RTU (Optional)

Construction

• Wetted Parts: SS-316

• Electronics Enclosure: SS-316

• Protection Class: IP-68

• Electrical Connection: M12 Connector

Power & Display

• Power Supply: 18–36 VDC

• Display: Backlit LCD

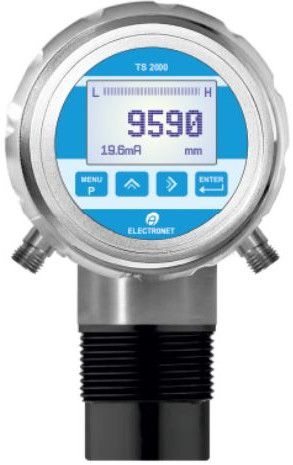

Ultrasonic Level Transmitter Features

•


  Non-contact level measurement





•


  Automatic temperature compensation





•


  Measures liquid height, distance to liquid, volume, and open-channel flow





•


  Backlit LCD display for clear visibility





•


  Narrow beam technology for precise targeting





•


  SS-316 enclosure for superior corrosion resistance





•


  IP-68 protection for reliable operation in harsh and wet environments




Technical Specifications Performance Characteristics

•


  Measurement Principle: Ultrasonic (Time of Flight)





•


  Measuring Range: Up to 12 meters





•


  Power Supply: 18–36 VDC





•


  Power Consumption:

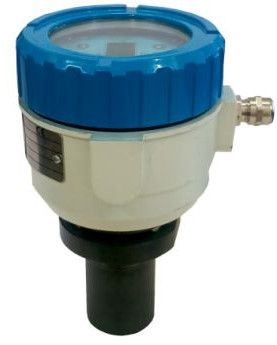

ULT-200 Ultrasonic Level Transmitter Features

• Non-contact level measurement

• Compact size with easy maintenance

• 2-wire loop-powered operation

• Minimizes process downtime

• Automatic temperature compensation

• LCD display for local indication

• Password protection for secure access

• Software-based calibration

• Easy to install and configure

• Narrow beam technology for precise detection

• Measures liquid height, distance to liquid, volume, or open-channel flow

  Description

Electronet ULT-200 is a compact 2-wire ultrasonic level transmitter designed for non-contact level measurement using transit-time technology. It measures the time taken for ultrasonic pulses to travel to the liquid surface and return, ensuring reliable performance in slurries, corrosive liquids, and wastewater applications. The transmitter provides a 4–20 mA output with LCD indication, offering an effective measuring range of up to 12 meters.

Technical Specifications Performance

• Measurement Principle: Ultrasonic (Time of Flight)

• Measuring Range: Up to 12 meters

• Accuracy: ±0.25% F.S.

• Linearity: ±0.1%

• Repeatability: ±0.1%

• Stability: ±0.05%

• Dead Band: <300 mm

• Beam Angle: <7°

• Measuring Frequency: 25 kHz

• Process Temperature: 0°C to 85°C max

• Operating Pressure: Atmospheric

• Temperature Coefficient: ±0.01% per °C

Electronics

• Electronic Location: Integral (Local)

• Output:

  • 4–20 mA DC

  • 4–20 mA with HART (Optional)

• Power Supply: 24 V DC, 2-wire loop powered

• Power Consumption: <500 mW

• Display: LCD

Protection & Housing

• Electronic Protection:

  • Weatherproof IP-67

  • Flameproof (CMRI IIA/IIB Certified)

• Enclosure Material:

  • Die-cast Aluminum (PU painted)

  • SS-316

Process Interface

• Process Connection:

  • 2" BSP (up to 8 m)

  • 2.5" BSP (8–10 m)

  • 3" BSP (10–15 m)

  • 4" BSP (15–20 m)

• Mounting: Vertical – Top of tank

• Probe Material: PVDF

Ambient Conditions

• Ambient Temperature: 0°C to 75°C

• Humidity: 5% to 95% RH, non-condensing

Optional

• Communication: HART protocol

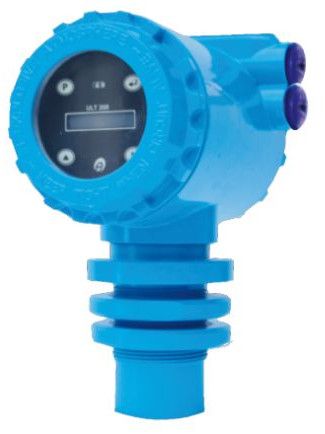

ULT 2008 – Battery Operated Ultrasonic Level Transmitter Features

• Non-contact type measurement

• Compact design & easy maintenance

• Battery operated

• Minimizes process downtime

• Automatic temperature compensation

• LCD display

• Password protection

• Software calibration

• Easy installation & configuration

• Narrow beam technology

• Measures liquid height, distance to liquid, volume or flow in open channels

Description

Electronet series ULT 2008 is a battery-operated ultrasonic level transmitter designed for non-contact level measurement.
It works on Ultrasonic Time-of-Flight technology, which calculates the time taken by ultrasonic pulses to travel from the sensor to the liquid surface and back.

This technology is ideal for:

• Slurries

• Corrosive liquids

• Wastewater applications

• Open channels

• Tanks without obstacles in the ultrasonic beam path

The transmitter provides local indication through an LCD display and supports measuring ranges up to 12 meters.

Technical Specifications Measurement

• Measurement Principle: Ultrasonic (Time of Flight)

• Measuring Range: Up to 12 meters

• Dead Band: < 300 mm

• Beam Angle: < 7°

• Measuring Frequency: 25 KHz

• Temperature Coefficient: ±0.01% per °C

Performance

• Accuracy: ±0.25% of F.S.

• Linearity: ±0.1%

• Repeatability: ±0.1%

• Stability: ±0.05%

Power & Output

• Communication Output: GSM, GPRS

• Power Supply: Battery Operated

• Battery Life: 2–10 years (depending on sampling time)

• Power Consumption: < 500 mW

Display

• Type: LCD

Operating Conditions

• Process Temperature: 0 to 85°C

• Operating Pressure: Atmospheric

• Ambient Temperature: 0 to 85°C

• Ambient Humidity: 5–95% RH (non-condensing at 25°C)

  Mechanical Details Electronic Protection Class

• Flameproof (CMRI 1A 11B Certified)

• Weatherproof IP-67

MOC – Electronics Enclosure

1. Die-cast aluminium (PU painted)

2. SS316

3. ABS Plastic

Process Connection

• 2” BSP (up to 8 meters)

• 2.5” BSP (8–10 meters)

• 3” BSP (10–15 meters)

• 4” BSP (15–20 meters)

Mounting

• Vertical – Top of the tank

MOC – Probe

• PVDF
