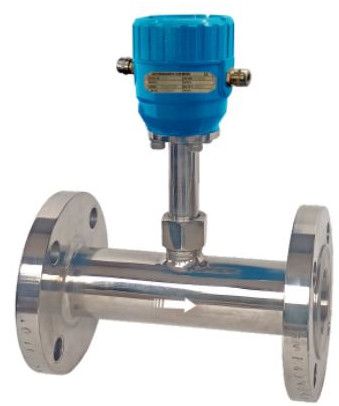

FL 102 Two Wire Turbine Flow Meter

• Simple & Cost-Effective Construction

• Provides Wide Flow Ranges

• Suitable for Non-Conductive, Clear Liquids

• Optional Remote Display Available

• Easy Maintenance

• Electronics Protection:

  • Weatherproof IP65

  • Flameproof (CMRI IIA/IIB Certified)

Electronet’s FL-102 turbine flow transmitters are designed for accurate flow measurement in industrial applications.
The flowing media rotates a vaned rotor at a speed proportional to the flow rate. A pick-up coil senses the rotor motion and generates a pulsating electrical signal.

The frequency of this signal is directly proportional to the flow rate and is converted into a standard 4–20 mA or Pulse (Open Collector) output. Summation of these pulses represents the total flow.

• Media: Clear Liquids

• Line Size: 15 NB to 200 NB

• Viscosity: Up to 100 cP

• Outputs:

  1. 4–20 mA DC

  2. Pulse (Open Collector)

• Calibration Range: Factory Calibrated (As per requirement)

• Accuracy: < ±0.5% of F.S. (20–100% Flow Range)

• Linearity: ±1% of F.S.

• Repeatability: ±1% of F.S.

• Pressure Drop: Approx. 0.28 kg/cm² @ max flow

• Turn Down Ratio: 10:1 to 100:1

• Process Temperature: 0°C to 85°C (max)

• Process Pressure: 0 to 10 kg/cm²

• Temperature Coefficient: ±0.01% per °C

1. Bearings: Tungsten Carbide Sleeve / V-Jewel

2. Rotor: SS410 / 17-4 PH

3. Shaft: Tungsten Carbide

4. Body / Support / Flange: Stainless Steel

• Power Supply: 24V DC

• Power Consumption: < 1 VA

• Response Time: < 100 mSec

1. M20 × 1.5 (F)

2. ½" NPT (F)

3. Pluggable Connector

• Threaded: 15 NB to 50 NB

• Flanged: 15 NB to 200 NB

• Tri-Clover: 15 NB to 100 NB

• SMS Union: 25 NB to 100 NB

• In-Line Installation (Horizontal or Vertical)

• Temperature: 0°C to 55°C

• Humidity: 5% to 95% RH (Non-Condensing)
