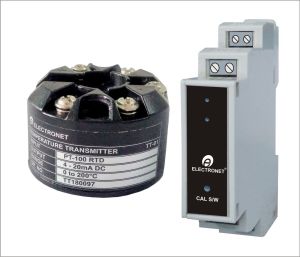

TT 01 Head Mount Temperature Transmitter

Head Mount Temperature Transmitter (TT-01)  Key Features

• Accurate on-line temperature measurement

• 2-wire system for easy installation

• Standard 4–20 mA DC output

• Head-mount transmitter design

• Compatible with RTD and Thermocouple sensors

• Accessible Span/Zero adjustment

• Suitable for any make of temperature sensor

  Product Description

Electronet TT-01 Series are head-mounted temperature transmitters designed for reliable and accurate measurements in industrial environments.
They accept inputs from RTD (PT-100 / PT-200) and Thermocouples (J & K type), converting the temperature signal into a 4–20 mA DC output.
With easily accessible zero and span adjustments, the TT-01 transmitter provides flexibility and long-term stability for diverse applications.

  Technical Specifications Performance Characteristics

• Input Types:

  1. RTD (PT-100 / PT-200), 2 or 3 Wire

  2. Thermocouple J / K Type

  3. Resistance

  4. mV (0 to 100 mV)

• Cold Junction Compensation: Provided for thermocouple input

• Calibration Range: Factory calibrated

• Accuracy: ±0.25% of F.S.

• Response Time: <500 mSec

• Power Consumption: <40 mW

• Temperature Coefficient: ±0.01% per °C

Electrical Specifications

• Power Supply: 24V DC

• Output: 4–20 mA DC (2-wire non-isolated)

Construction & Mounting

• Electronics Enclosure Material: ABS Plastic

• Mounting Options: DIN Rail / Head Mount

• Dimensions:

  • DIN Rail: 86 mm (H) × 20 mm (W) × 58 mm (D)

  • Head Mount: 30 mm (H) × 45 mm (Dia)

• Weight: 250 gms

Environmental Conditions

• Ambient Temperature: -20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

• Certification: 43 (as per manufacturer data)
