Panel Instruments

• Source 4–20 mA DC in Manual Mode

• Sink 4–20 mA DC in Auto Mode

• Bumpless output transfer

• Auto/Manual selection through front panel switch

• Compact size with easy maintenance

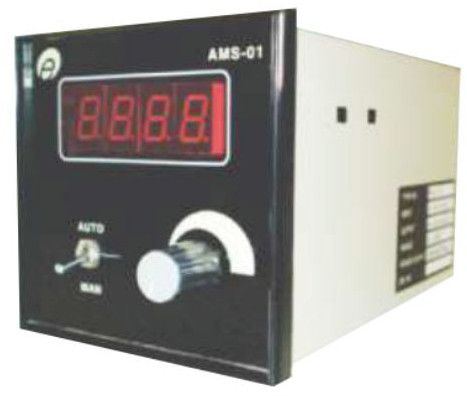

Electronet series AMS-01 Auto/Manual Stations are designed for precise signal control in various industrial applications.
The output can be easily adjusted using the front-mounted potentiometer, and the instrument offers smooth (bumpless) transfer between Auto and Manual modes.
It provides reliable, stable, and user-friendly signal conditioning for process control systems.

• Input (Auto Mode): 4–20 mA DC

• Output: 4–20 mA DC

• Display: LED Display

• Accuracy: ±0.25% of F.S.

• Linearity: ±0.25%

• Repeatability: ±0.25%

• Response Time: < 100 ms

• Temperature Coefficient: ±0.01% per °C

• Power Supply:

  • 90–250 V AC, 50 Hz

  • 24 V DC

• Power Consumption: < 6 W

• MOC – Enclosure: Sheet Steel, Powder Coated

• Bezel Size Options:

  1. 144 (H) × 72 (W) × 200 (D) mm (DIN Standard)

  2. 96 (H) × 96 (W) × 160 (D) mm (DIN Standard)

• Mounting: Panel Flush Mount

• Temperature: –20°C to 75°C

• Humidity: 5% to 95% RH (non-condensing)

DIAM 151 KK – Loop Powered Tri-Color Bar-Graph Indicator Features

• Loop powered – operates directly from 4–20 mA signal

• 51-segment tri-color LED bar-graph

• 4–20 mA, 2-wire input

• Available in 96 × 96 mm DIN panel mount or 2" pipe-mount version

• LED digital display with tri-color bar-graph indication

• Suitable for monitoring Temperature, Pressure, Flow, Level and other process parameters

• Programmable range through front fascia

• Low loop burden – voltage drop approx. 3.6 VDC

  Description

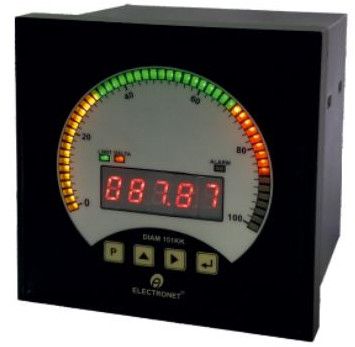

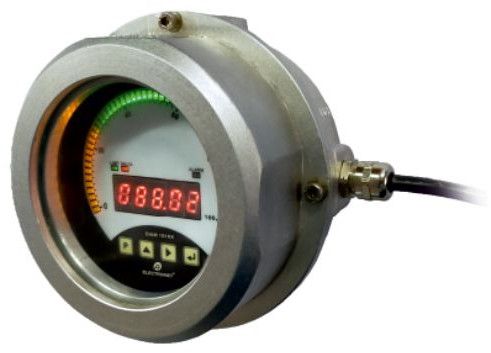

Electronet series DIAM 151 KK is a compact, loop-powered tri-color bar-graph indicator designed for industrial process monitoring.
It receives power directly from the 4–20 mA loop, eliminating the need for an external power supply.

The instrument features a clear LED display along with a 51-segment tri-color bar-graph for instant process visualization.
It can be configured easily using front-panel keys and is ideal for field or panel mounting.

It is suitable for a wide range of industries and supports reliable monitoring of key parameters such as temperature, pressure, flow, and level.

  Technical Specifications Performance Characteristics

• Input: 4–20 mA DC, 2-wire

• Accuracy: ±0.1% of F.S.

• Response Time: < 500 ms

• Bar-Graph: 51-segment tri-color LED

• Display: LED numeric display

• Voltage Drop: Approx. 3.6 VDC

Power

• Power Supply: Loop powered, 24 V DC (via 4–20 mA signal)

Alarm Output

• One or two Open Collector Alarm Outputs (configurable)

• Set Point Indication:

  • Orange LED blinks when value crosses the programmed set point

Diagnostics

• Displays ‘UNDER’ when input < 3.85 mA

• Displays ‘OVER’ when input > 21.8 mA

• Fuse blown LED turns ON when internal fuse fails

Mechanical & Mounting

• Bezel Size: 96 mm × 96 mm (panel mount)

• Mounting:

  • Panel flush mounting

  • 2" pipe mounting (field)

• Termination: Strippable connectors

• Enclosure Material: MS powder-coated / Aluminum die-cast

Enclosure Protection

• Weatherproof: IP65

• Flameproof: CMRI IIA IIB Certified

Ambient Conditions

• Operating Temperature: –20°C to 55°C

• Relative Humidity: 5% to 95% RH (non-condensing at 35°C)

• ON/OFF Controller – DPC-100

• Single-channel operation

• Software calibration

• Open sensor indication

• Cold Junction Compensation (CJC) for thermocouple inputs

Electronet series DPC-100 is a Digital Process Indicator and ON/OFF Controller designed for a wide range of industrial process applications.
It can monitor and control parameters such as Temperature, Humidity, Pressure, Flow, Level, and more.

The measuring range and control setpoints can be configured through the front keypad, and the control output is available on the rear terminals.
Optional features include retransmission output, communication interface, and transmitter power supply, making the DPC-100 a versatile process control solution.

• Type of Control: ON/OFF

• Number of Inputs: 01

• Input Types:

  1. RTD (PT-100 / PT-200), 2 or 3 wire

  2. Thermocouple – J, K, R, S, T, B, E types

  3. Current – 0–20 mA / 4–20 mA

  4. Voltage – 0–5 VDC / 1–5 VDC / 0–0.1 VDC

• Display: LED Display

• Range: Programmable for mA & Voltage (–999 to +9999)

• Accuracy:

  • R, S, B Thermocouples: Better than ±0.5% of F.S.

  • Other Inputs: Better than ±0.25% of F.S.

• Open Sensor Indication: “OPEN” displayed for RTD & Thermocouple inputs

• Response Time: < 200 ms

• Temperature Drift: < 0.01% of F.S. per °C

• Isolation: 1.4 KV between Input, Output & Power Supply

• Power Supply: 90–250 V AC or 24 V DC

• Power Consumption: < 10 VA

• Enclosure Options:

  1. DIN Standard

  2. Field Mount – IP65

  3. Flameproof – CMRI IIA IIB Certified

• Bezel Size: 96 (H) × 96 (W) × 160 (D) mm (DIN Standard)

• Mounting: Panel flush for DIN version; wall mount for WP/FLP

• Weight: < 1 kg (approx.)

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

• ON/OFF Controller

• Single Channel Operation

• Software Calibration

• Open Sensor Indication

• Universal Input Compatibility

• Cold Junction Compensation for Thermocouple Input

• Separate Display for Process Value & Engineering Unit

Electronet’s Series DPC-100KK is a universal input Process Indicator / Controller designed for a wide range of industrial applications. It is ideal for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Speed, and Level.
The measuring range and control points can be easily configured through the front keypad. A dedicated display for engineering units provides enhanced clarity and operator convenience. Control outputs are accessible from the rear terminals.

Type of Control: ON/OFF
No. of Inputs: 1

1. RTD – PT-100 / PT-200 (2 or 3 Wire), Cu-53 & Potentiometric

2. Thermocouple – J/K/R/S/T/B/E Types (Universal)

3. Current – 0–20 mA / 4–20 mA

4. Voltage – 0–5 V DC / 1–5 V DC / 0–10 V DC

• LED Display

• Programmable for mA & Voltage (–1999 to +9999)

• Fixed display for RTD & Thermocouple inputs

• For R, S & B Type TC: ±0.5% of F.S.

• For all other inputs: ±0.25% of F.S.

Open Sensor Indication: Displays “OPEN” for RTD & Thermocouple

• Power Supply: 90–250 V AC

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S. per °C

• Response Time: <100 mSec

Enclosure Options:

1. DIN Standard

2. Field Mount – IP65

3. Flameproof – CMRI IIA IIB Certified

Bezel Size (DIN STD): 48 (H) × 96 (W) × 160 (D) mm
Mounting: Flush Panel Mount / Wall Mount (WP/FLP)
Weight: <500 g (Approx.)

• Operating Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)

• ON/OFF Controller

• Single Channel

• Universal Input Compatibility

• Open Sensor Indication

• Software Calibration

• Cold Junction Compensation for Thermocouple Inputs

• Large 0.8” Seven Segment LED Display

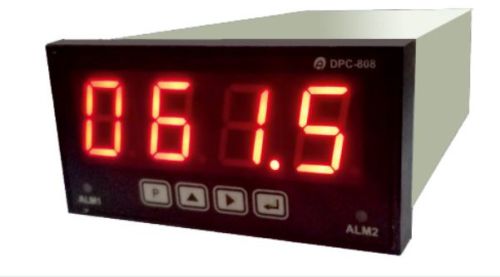

Electronet Series DPC-808 is a compact, universal input Process Indicator / Controller designed for a wide range of industrial applications.
It is suitable for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Level, and more.

The measuring range and control points can be easily set using the keypad on the front fascia, while the control output is provided on the rear terminals.
Its low-cost design, compact size, and large display height make the DPC-808 an excellent choice for process control requirements.

Type of Control: ON/OFF
Number of Inputs: 1

1. Universal Input

2. RTD – PT-100 / PT-200 (2 or 3 Wire)

3. Thermocouple – J / K / R / S / T / B / E Types

4. Current – 0–20 mA / 4–20 mA

5. Voltage – 0–5 V DC / 0–0.1 V DC

• 4 × 1 Digit, 0.8”, 7-Segment Red LED

• Programmable for mA & Voltage (–999 to +9999)

• Fixed display for all RTD & Thermocouple inputs

• R, S & B Type TC: ±0.5% of F.S.

• All other inputs: ±0.25% of F.S.

• Open Sensor Indication: Displays ‘OPEN’ for RTD & Thermocouple inputs

• Power Supply:

  1. 90–250 V AC

  2. 24 V DC (±10%)

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S./°C

• Response Time: <200 mSec

Enclosure Options:

1. DIN Standard

2. Weatherproof – IP66

3. Flameproof – CMRI Certified

Bezel Size Options:

• 96 (H) × 96 (W) × 160 (D) mm

• 48 (H) × 96 (W) × 160 (D) mm

Mounting:

• Flush Panel Mount (DIN Standard)

• Wall Mount for Weatherproof / Flameproof Models

Weight:

• Approx. 500 g (48 × 96 model)

• Less than 1 kg (96 × 96 model)

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)

• ON/OFF Controller

• Dual Channel Operation

• Universal Input Compatibility

• Open Sensor Indication

• Software Calibration

• Cold Junction Compensation for Thermocouple Inputs

Electronet Series DPC-200 is a dual-channel, universal input Process Indicator / Controller designed for diverse industrial applications.
It is suitable for monitoring and controlling parameters such as Temperature, Humidity, Pressure, Flow, Level, and more.

Both channels are configurable through the front keypad for measuring ranges and control points. Control outputs are provided at the rear terminals. Retransmission output and communication interface further enhance the functionality of the DPC-200.

Type of Control: ON/OFF
Number of Inputs: 2

1. Universal Input

2. RTD – PT-100 / PT-200 (2 or 3 Wire)

3. Thermocouple – J / K / R / S / T / B / E Types

4. Current – 0–20 mA / 4–20 mA

5. Voltage – 0–5 V DC / 1–5 V DC / 0–0.1 V DC

• 4 × 2 Digit, 0.5” Red LED Display (7-Segment)

• Programmable for mA & Voltage (–999 to +9999)

• Fixed display for RTD & Thermocouple inputs

• R, S & B Type TC: ±0.5% of F.S.

• All other inputs: ±0.25% of F.S.

• Open Sensor Indication: Shows “OPEN” for RTD & Thermocouple

• Power Supply:

  • 90–250 V AC

  • 24 V DC (±10%)

• Power Consumption: <10 VA

• Temperature Drift: <0.01% of F.S./°C

• Response Time: <200 mSec

• Isolation: 1.4 kV between Input, Output & Power Supply

Enclosure Options:

1. DIN Standard

2. Field Mount – IP65

3. Flameproof – CMRI IIA IIB Certified

Bezel Size (DIN STD): 96 (H) × 96 (W) × 160 (D) mm
Mounting: Flush Panel Mount / Wall Mount (WP / FLP)
Weight: Approx. 1 kg

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (Non-condensing)

Product Description

The Electronet DPI-160-1 is a single-channel tri-color bar-graph indicator designed for precise monitoring in industrial applications. It supports key process parameters including temperature, humidity, pressure, flow, level, and more.
With a programmable input range, front-panel keypad configuration, and rear control outputs, the DPI-160-1 ensures flexible integration. The unit also features retransmission output, communication port, and a 101-segment bar-graph display for clear visual indication.

  Key Features

• Single-channel monitoring

• Universal input compatibility

• Multi-color 101-segment bar-graph display

• Open sensor detection

• Software calibration

• Cold junction compensation for thermocouple input

• Retransmission output & communication port

• Robust industrial enclosure

  Technical Specifications Performance Characteristics

Number of Bar-Graph Segments: 101
Number of Channels: 01

Input Types

1. Linear Inputs:

   • 4–20 mA, 0–20 mA, 0–6V, 1–5V, –20 µA to +20 µA

2. RTD Inputs:

   • PT-100 & PT-200 (–100°C to 400°C)

3. Thermocouples:

   • Types: J, K, R, S, T, B, E

4. Current Inputs:

   • 0–20 mA / 4–20 mA

5. Voltage Inputs:

   • 0–5 V DC / 0–0.1 V DC

Display

• 4-digit, 0.3” red LED for process value

• 101 bi-color LED bar-graph

Range

• Programmable for mA & voltage: –999 to +9999

• Fixed for RTD & thermocouple

Accuracy

• R & S thermocouples: ±0.5% of F.S.

• Other inputs: ±0.1% of F.S.

Open Sensor Indication

• Displays “OPEN” for RTD & thermocouple faults

Power Supply

• 90–250 V AC or 24V DC ±10%

• Power consumption: <10 VA

Environmental & Operational

• Temperature drift: <0.01% of F.S./°C

• Response time: <100 mSec

• Isolation: 1.4 KV (Input / Output / Power)

• Operating Temperature: –20 to 55°C

• Humidity: 5% to 95% non-condensing

Mechanical

• Enclosure: DIN Standard

• Bezel size: 36 mm (H) × 175 mm (W)

• Mounting: DIN Rail or Field Mount

• Weight: Approx. 2 kg

  Optional Features

• Transmitter power supply:

  • 24V DC / 30 mA or 24V DC / 100 mA

• Retransmission output:

  • 4–20 mA or 0–5 V (Isolated per channel)

• Alarm output:

  • 2 configurable potential-free relay contacts (High, Low, High-High, Low-Low)

  • 1 C/O, 1 Amp @ 230 V AC

Product Description

The Electronet FL-244 is a microcontroller-based flow indicator and totaliser designed for accurate flow measurement in industrial applications.
It supports linear and square-root inputs, making it suitable for differential pressure flowmeters, orifice/venturi systems, and other flow metering instruments.
Equipped with batch mode, low-flow cut-off, input averaging, and MODBUS RTU communication, the FL-244 ensures reliable flow monitoring with flexible configuration options.

  Key Features

• LED display with clear flow indication

• Selectable input type: Linear / Square Root

• Supports Normal & Batch operating modes

• Input averaging for turbulent flow conditions

• Programmable low-flow cut-off

• Software calibration for easy configuration

• MODBUS RTU communication

• Suitable for industrial environments with multiple enclosure options

Technical Specifications Performance Characteristics

Operating Modes: Normal / Batch

Input Types

1. Voltage: 1–5 V (Linear / Square Root)

2. Current: 4–20 mA (Linear / Square Root)

3. Frequency: 0–10 kHz

Display

• LED display for flow rate and totalised flow

Range

• Programmable from 0 to 9999

Accuracy

• Better than ±0.25% of Full Scale

Open Sensor Indication

• Available

Power Supply

• 90–250 V AC

Power Consumption

• Less than 10 VA

Temperature Drift

• <0.01% of F.S. / °C

Response Time

• <200 mSec

Electrical Isolation

• 1.4 KV isolation between input, output & power supply

Enclosure & Mechanical Details Enclosure Options

• DIN Standard

• Weatherproof (IP65)

• Flameproof (CMRI IIA IIB Certified)

Dimensions

• 96 mm (H) × 96 mm (W) × 160 mm (D)

Mounting

• Panel flush mounting (DIN)

• Wall mounting (Weatherproof enclosure)

Weight

• Less than 2 kg

Ambient Conditions

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% non-condensing

FL-244 OC Flow Indicator & Totaliser  Product Description

The Electronet FL-244 OC is a microcontroller-based flow indicator and totaliser designed for industrial flow measurement applications. It supports linear, multipoint, and square-root inputs, making it highly flexible for various process conditions.
With advanced features like batch mode operation, low-flow cut-off, input averaging, and MODBUS RTU communication, this indicator provides reliable and accurate flow monitoring for pipelines, process plants, and utility systems.

  Key Features

• LED indication for process status

• Selectable input type: Linear / Multipoint Table

• Normal & Batch operating modes

• Input averaging for turbulent flow conditions

• Programmable low-flow cut-off

• Software calibration for easy setup

• MODBUS RTU communication support

• High-accuracy measurement

• Rugged industrial enclosure options (DIN, Weatherproof, Flameproof)

  Technical Specifications Performance

Operating Modes: Normal / Batch

Input Options

1. Voltage: 1–5 V (Linear)

2. Current: 4–20 mA (Linear)

3. Frequency: 0–10 kHz

Display

• LCD display for flow rate and totalised flow

Range

• Programmable: 0 to 9999

Accuracy

• Better than ±0.25% of Full Scale

Open Sensor Indication

• Available

Power Supply

• 90–250 V AC

Power Consumption

• <10 VA

Temperature Drift

• <0.01% of F.S./°C

Response Time

• <200 mSec

Electrical Isolation

• 1.4 KV between input, output & power supply

  Mechanical Specifications Enclosure Types

• DIN Standard

• Weatherproof IP65

• Flameproof (CMRI IIA IIB Certified)

Dimensions

• 96 (H) × 96 (W) × 160 (D) mm (DIN Standard)

Mounting

• Panel flush mounting (DIN)

• Wall mounting (Weatherproof)

Weight

• Less than 2 kg

Operating Environment

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% non-condensing

  Optional Features Transmitter Power Supply

• 24V DC, 100 mA

Retransmission Output

• 4–20 mA

Alarm Outputs

• 2 potential-free relay contacts

  • 1 C/O, 1A @ 230V AC

  • Configurable for High, Low, and Batch operations

Communication Port

• RS485 with MODBUS RTU protocol

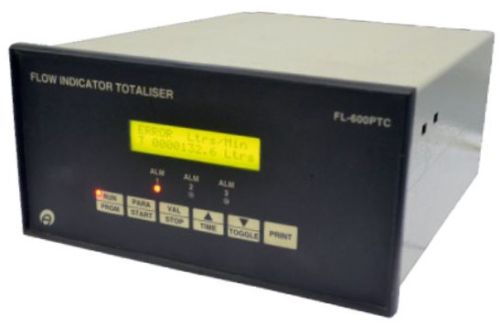

FL-600 PTC Flow Indicator Totaliser  Product Description

The Electronet FL-600 PTC is a microcontroller-based Flow Indicator and Totaliser engineered for precise and compensated flow measurement in industrial applications.
It supports three separate inputs—Flow, Temperature, and Pressure—offering fully compensated flow calculation. The unit provides LCD indication, programmable settings, low-flow cut-off, and software calibration for added flexibility.
A built-in battery backup ensures data retention in case of power failure, making it highly reliable for demanding process environments.

  Key Features

•


  Temperature & Pressure compensated flow measurement





•


  Clear LCD display for real-time flow rate and totalised flow





•


  Selectable input type: Linear / Square Root for flow





•


  Normal operating mode





•


  Input averaging for turbulent flow





•


  Programmable low-flow cut-off





•


  Software calibration





•


  Suitable for industrial & field installations with rugged enclosure options




  Technical Specifications Performance Characteristics

No. of Inputs: 03

Input Types

1.


   Flow Input:





   •


     4–20 mA / Voltage (0–5V / 1–5V)









2.


   Temperature Input:





   •


     4–20 mA or RTD









3.


   Pressure Input:





   •


     4–20 mA








Display

•


  LCD display for Flow Rate and Totalised Flow




Range

•


  Programmable: 0 to 9999




Accuracy

•


  Better than ±0.25% of Full Scale




Open Sensor Indication

•


  Provided




Power Supply

•


  90–250 V AC, 50 Hz





•


  24 V DC




Power Consumption

•


  Less than 10 VA




Temperature Drift

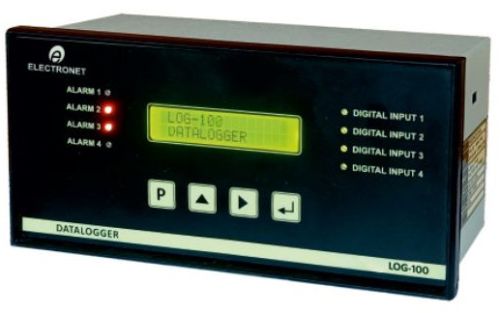

LOG-100 Data Logger  Product Description

The Electronet LOG-100 is a microcontroller-based data logger designed for reliable acquisition and storage of industrial process data.
It supports both analog and digital inputs, making it suitable for flow measurement, monitoring applications, and general-purpose data recording.
Data can be logged directly to a USB flash drive, eliminating the need for a PC connection. The device also supports GSM/GPRS communication, enabling remote monitoring and data transfer.
All operating parameters can be configured from the front membrane keypad, with LED indicators for channel number, process values, and engineering units.

  Key Features

•


  LCD display for clear process indication





•


  Supports Analog & Digital input types





•


  Normal mode operation





•


  USB data logging capability





•


  Software calibration for easy configuration





•


  Communication via GSM or GPRS





•


  LED indicators for alarms and digital inputs





•


  Microcontroller-based design for high reliability




  Technical Specifications General Characteristics

Instrument Name: Data Logger
Model No.: LOG-100

Display

•


  16-character, 2-line Alphanumeric LCD





•


  Backlight control included




Power Supply

•


  24 V DC





•


  Solar-powered option (24 V DC)




Power Consumption

•


  Maximum 2 W




  Input Specifications Digital / Flow Inputs

•


  4 digital inputs





•


  Pulse rate: up to 200 Hz, TTL input




Analog Inputs

•


  4 analog inputs (factory settable)





•


  Supported types: 4–20 mA / 1–5 V




  Performance Accuracy

•


  ±0.1% of Full Scale




Temperature Ratings

•


  Maximum operating temperature: 50°C





•


  Storage temperature: 0–80°C




Humidity

•


  0–80% RH non-condensing (storage)





•


  5–95% RH non-condensing (operation)




Data Retention

•


  Stored in USB Pen Drive (non-volatile)





•


  No battery backup required





•


  Data retention up to 10 years




  Mechanical Specifications Bezel Size

•


  96 mm (H) × 192 mm (W) × 60 mm (D)




Mounting

•


  Panel mounting




Enclosure Options

•


  DIN Standard





•


  Field Mount IP-65




Weight

•


  Less than 4 kg (approx.)




Ambient Temperature

•


  –20°C to 55°C




The Electronet PS-01 is a compact single-channel transmitter power supply designed to deliver stable 24V DC output for field instruments.
It is ideal for locations where a reliable DC supply is not readily available. With a maximum current rating of 100 mA, the PS-01 efficiently powers transmitters and process instruments used in industrial automation.
Its DIN rail mounting, compact size, and durable ABS enclosure make it suitable for control panels, saving space while maintaining a clean installation layout.

• Single-channel power supply

• 24V DC output, 100 mA max

• Compact design for space-saving installation

• Suitable for transmitters & field instruments

• DIN rail mounting for easy setup

• Stable, regulated power output

No. of Inputs: 01
No. of Outputs: 01

• Input Voltage: 230 VAC, 50 Hz ±10%

• Output Voltage: 24V DC

• Current Rating: 100 mA max

• Line Regulation: < +30 mV DC

• Load Regulation: < 1.5% per amp

• Output Ripple: < 20 mV RMS

• Isolation: 1.4 KV between input & output

• Short Circuit Protection: Provided

• Temperature Coefficient: +0.01% per °C

• ABS Plastic (durable & lightweight)

• 60 mm (H) × 70 mm (W) × 110 mm (D)

• DIN Rail Type

• Approx. 0.5 kg

• Temperature: 0°C to 55°C

• Humidity: 5% to 95% non-condensing

(16-Channel Dedicated / 8-Channel Universal Input)

• Long-lasting battery backup for memory

• Cold junction compensation for thermocouple input

• Parallel printer port

• Software calibration

• MODBUS RTU communication over RS-485

• Available in 8-channel universal or 16-channel dedicated input versions

• Individual alarm output for each channel

• 2-digit LED display for channel number

• 4-digit LED display for process value

• 5-digit LED display for engineering units

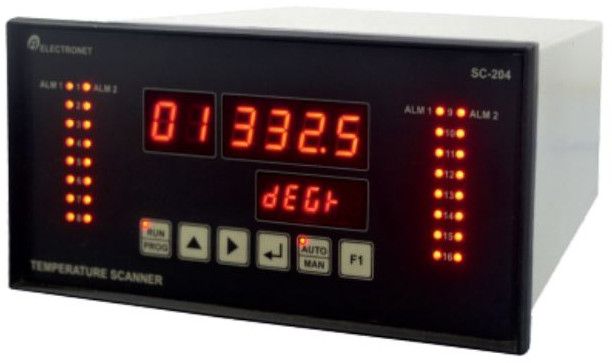

Electronet Series SC-204 is a microcontroller-based process scanner designed for industrial applications where multiple input monitoring is required. It supports 16 dedicated inputs or 8 universal inputs, allowing compatibility with RTD, Thermocouple, mA, Voltage, and mV signals.
It provides real-time display of channel number, process value, and engineering units with optional alarms and communication capabilities. All parameters are fully programmable through the front keypad.

Number of Inputs

• 16 Channels (Dedicated)

• 8 Channels (Universal)

Input Types

1. Dedicated (16-Channel)

• RTD (PT-100 / PT-200), 2- or 3-wire

• Thermocouples: J, K, R, S, E, B, T types

• mA (0–20 mA / 4–20 mA)

• Voltage (0–5 V / 1–5 V / 0–100 mV DC)

2. Universal (8-Channel)

• RTD / Thermocouple / mA / Voltage / mV

• LED display for Process Value, Channel Number, and Engineering Unit

• Range:

  • Programmable –999 to +9999 (for mA & Voltage)

  • Fixed range for RTD & Thermocouple types

• Programmable from 1 to 99 seconds

• 90–250 VAC, 50 Hz

• 24 VDC (optional)

• Power Consumption: < 10 VA

• Thermocouple (R/S): ±0.5% of F.S.

• Other Inputs: ±0.1% of F.S.

• Open Sensor Indication: Displays “OPEN” for RTD & TC inputs

• Temperature Drift: <0.01% of F.S. / °C

• Response Time: <200 ms per channel

• DIN Standard

• Field Mount (IP-65)

• Flameproof (CMRI IIA IIB Certified)

Dimensions (DIN STD)

• 96 (H) × 192 (W) × 250 (D) mm

Mounting

• Flush mounting (DIN STD)

• Wall mounting (WP / FLP)

Weight

• Approx. 4 kg

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

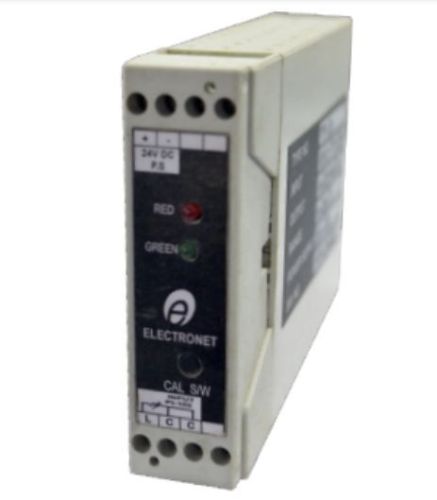

Loop Powered Isolator — Model TX-00 Features

• Loop powered isolator

• Dedicated input type

• High accuracy: ±0.25% F.S.

• DIN rail mounting

• Reliable and cost-effective

• Compact design for easy installation and maintenance

• Signal conversion with isolation

Description

Electronet Series TX-00 are loop-powered isolators designed for industrial applications where reliable signal conversion and electrical isolation are required.
They support inputs such as RTD, Thermocouple, and Current signals, and provide an isolated 4–20 mA output.
Its compact construction ensures an elegant appearance while optimizing panel space.

Technical Specifications General

Number of Inputs: 01
Number of Outputs: 01

Input Types (Dedicated)

• RTD: PT-100 / PT-200 / Cu-53 (2 or 3 wire)

• Thermocouples (various types)

• Current: 0–20 mA / 4–20 mA

• Voltage inputs (as specified)

Output

• Isolated 4–20 mA DC

Accuracy

• ±0.5% of F.S. for R, S & B type thermocouples

• ±0.25% of F.S. for all other inputs

Isolation

• 1.4 kV between input & loop

Power Supply

• 24 V DC loop powered

Response Time

• < 500 ms

Temperature Coefficient

• ±0.01% per °C

Mechanical

Enclosure: ABS, Plastic
Dimensions: 75 mm (H) × 23 mm (W) × 110 mm (D)
Mounting: DIN rail type
Weight: Approx. 250 g

Operating Conditions

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

• Single input, single output

• Signal conversion with electrical isolation

• Dedicated input type

• High accuracy: better than ±0.25% F.S.

• Operates on 24V DC supply

• Compact size for easy installation & maintenance

• DIN rail mounting

• Reliable and cost-effective design

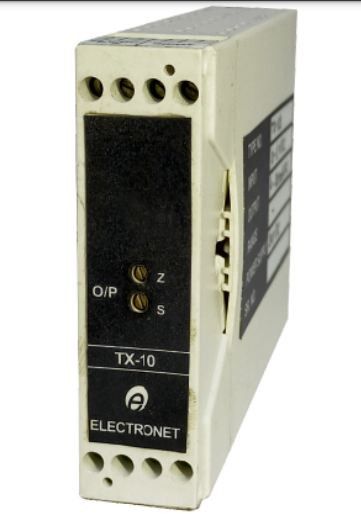

Electronet Series TX-10 are high-performance signal isolators designed for industrial applications requiring isolated signal transmission.
They support dedicated inputs such as current and voltage and provide isolated output in the form of current or voltage.
Its compact enclosure ensures minimal panel space usage while delivering reliable performance.

No. of Inputs: 1
No. of Outputs: 1

• Current: 4–20 mA

• Voltage: 0–5 V / 1–5 V

• Isolated Current: 4–20 mA

• Isolated Voltage: 0–5 V DC

• ±0.25% of Full Scale

• 1.5 kV between input, output & power supply

• 24 V DC

• < 4 VA

• < 50 ms

• ±0.01% per °C

Enclosure: ABS Plastic
Dimensions: 75 mm (H) × 22 mm (W) × 110 mm (D)
Mounting: DIN Rail
Weight: Approx. 250 g

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

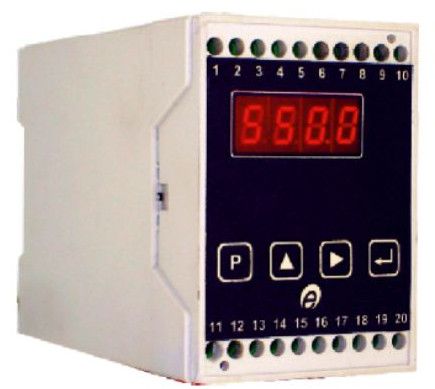

Trip Amplifier — Model TX-100 Features

• Single input with dual output

• Signal conversion with galvanic isolation

• Universal input (RTD / Thermocouple / mA / Voltage)

• Potential-free relay outputs (2 Nos.)

• Operates on 24V DC

• Compact, reliable & cost-effective design

• Easy maintenance with DIN rail mounting

  Description

Electronet Series TX-100 Trip Amplifiers are designed for industrial applications requiring signal conversion, isolation, and dual trip output.
They support universal inputs such as RTD, Thermocouples, Current, and Voltage, and provide isolated analog outputs.
The compact ABS enclosure ensures optimal panel space utilization and long-term reliability.

  Technical Specifications General

No. of Inputs: 1
No. of Outputs: 2

Input Type (Universal)

1. RTD: PT-100 / PT-200 / CU-53 (2 or 3 wire)

2. Thermocouple: J, K, R, S, T, E, B types

3. Current: 0–20 mA / 4–20 mA

4. Voltage: 0–5 V DC / 0–10 V DC / 1–5 V DC

Output Type

• Isolated 4–20 mA / 0–5 V

Trip Output

• Potential-free relay contacts, 1 c/o, 1A @ 230V AC

Display

• 4 × 1 digit, 0.3” Red LED (7-segment)

Isolation

• 1.5 kV between input, output & power supply

Power Supply

• 24 V DC (External)

Accuracy

• Better than ±0.25% F.S.

Power Consumption

• < 15 VA

Response Time

• < 100 ms

Temperature Coefficient

• ±0.01% F.S. / °C

  Mechanical

Enclosure: ABS Plastic
Dimensions: 75 mm (H) × 55 mm (W) × 110 mm (D)
Mounting: DIN Rail
Weight: Approx. 500 g

  Operating Conditions

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)

  Range

• Programmable: –999 to +9999 (for mA & Voltage inputs)

• Fixed ranges for RTD & Thermocouple inputs

Optional

•  Isolated Retransmission Output: 4–20 mA / 0–5 V

• RS-485 Communication (MODBUS RTU)

• Single input with dual isolated outputs

• Signal conversion with complete electrical isolation

• Dedicated input type

• High accuracy: better than ±0.25% F.S.

• Operates on 24V DC supply

• Compact and maintenance-friendly design

• DIN rail mounting

• Reliable and cost-effective solution for industrial signal conditioning

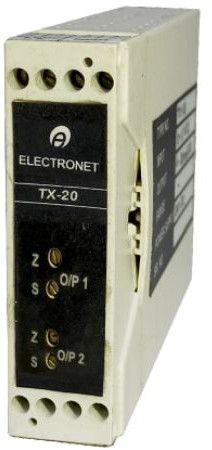

Electronet Series TX-20 signal isolators are designed for applications requiring a single input and dual isolated outputs.
They accept dedicated current or voltage inputs and deliver isolated analog outputs in either current or voltage form.
Its compact ABS enclosure ensures efficient use of panel space, while providing superior performance and electrical isolation.

No. of Inputs: 1
No. of Outputs: 2

• Current: 4–20 mA

• Voltage: 0–5 V / 1–5 V

• Isolated Current: 4–20 mA

• Isolated Voltage: 0–5 V DC

• ±0.25% of Full Scale

• 1.5 kV between input, output & power supply

• 24 V DC

• < 4 VA

• < 50 ms

• ±0.01% per °C

Enclosure: ABS Plastic
Dimensions: 75 mm (H) × 22 mm (W) × 110 mm (D)
Mounting: DIN Rail
Weight: Approx. 250 g

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)
