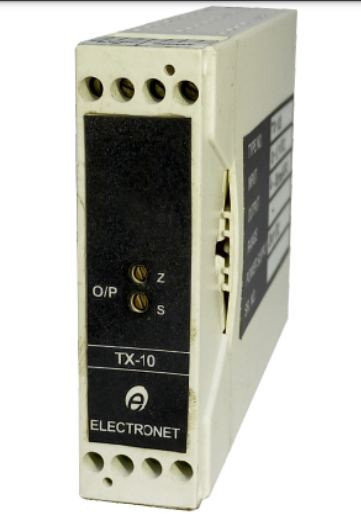

TX 10 Industrial Single Channel Signal Isolator

• Single input, single output

• Signal conversion with electrical isolation

• Dedicated input type

• High accuracy: better than ±0.25% F.S.

• Operates on 24V DC supply

• Compact size for easy installation & maintenance

• DIN rail mounting

• Reliable and cost-effective design

Electronet Series TX-10 are high-performance signal isolators designed for industrial applications requiring isolated signal transmission.
They support dedicated inputs such as current and voltage and provide isolated output in the form of current or voltage.
Its compact enclosure ensures minimal panel space usage while delivering reliable performance.

No. of Inputs: 1
No. of Outputs: 1

• Current: 4–20 mA

• Voltage: 0–5 V / 1–5 V

• Isolated Current: 4–20 mA

• Isolated Voltage: 0–5 V DC

• ±0.25% of Full Scale

• 1.5 kV between input, output & power supply

• 24 V DC

• < 4 VA

• < 50 ms

• ±0.01% per °C

Enclosure: ABS Plastic
Dimensions: 75 mm (H) × 22 mm (W) × 110 mm (D)
Mounting: DIN Rail
Weight: Approx. 250 g

• Temperature: –20°C to 55°C

• Humidity: 5% to 95% RH (non-condensing)
